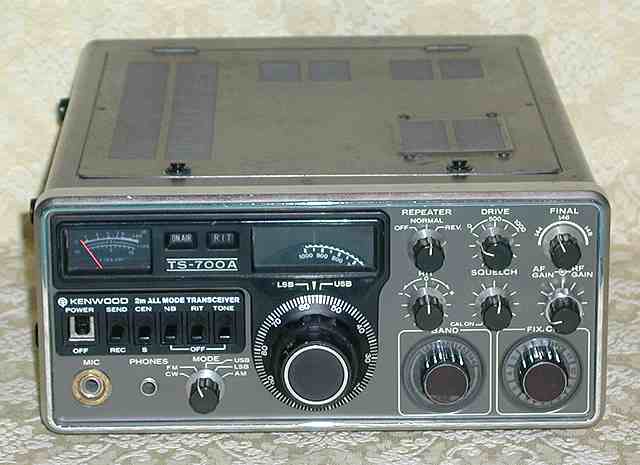

| Type: | Amateur VHF transceiver |
| Frequency range: | 144-148 MHz |
| Mode: | AM/FM/SSB/CW |
| RF Power output: | 10 W (AM: 2 W) |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC or mains 120/240 VAC |
| Current drain: | RX: ? mA TX: Max 4 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 278*124*320 mm |
| Weight: | 11 Kg |
| Manufactured: | 197x-19xx (Discontinued) |
 TS-700A_user_manual.pdf | 34337 kB |
 TS-700G_modifications.zip | 876 kB |
| TS-700G_service_manual.pdf | 3653 kB |
| TS-700_user_manual.pdf | 2576 kB |
