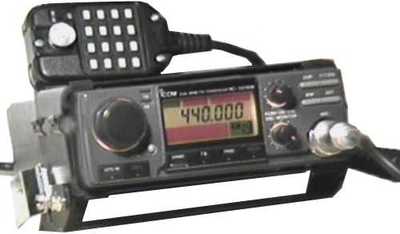

Icom IC-3210 - Veicolare bibanda Vhf/Uhf
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX: 144-146 / 430-440 MHz RX: 138-174 / 400-470 MHz |
| Mode: | FM |
| RF Power output: | Hi: 25/25 W Lo: 5/5 W |
| Receiver system: | Dual conversion superheterodyne 1st IF: 30.875 MHz - Crystal filter: 30M15B 2nd IF: 455 KHz - Ceramic filter: CFW455E |
| Sensitivity: | 0.18 uV (12 dB SINAD) |
| Selectivity: | 12.5 KHz (-6 dB), 30 KHz (-60 dB) |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC +/- 15% |
| Current drain: | RX: 550-900 mA TX: 3.6-7.6 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 140*50*180 mm |
| Weight: | 1.2 Kg |
| Manufactured: | Japan, 1988-1990 (Discontinued) |
| Other: | 20 double-spaced memories. CTCSS/PL for TX is standard while CTCSS/PL for RX is optional. New price 1988 in Sweden: 5600:- SEK |
 IC-3210_manuale_uetente_italiano.pdf | 1396 kB |
 IC-3210_modifications.zip | 3100 kB |
| IC-3210_schematic_diagram.pdf | 2728 kB |
| IC-3210_service_manual.pdf | 3184 kB |
| IC3210_user_manual.pdf | 3008 kB |
| pll2001.pdf | 632 kB |
| tk-10420.pdf | 195 kB |
