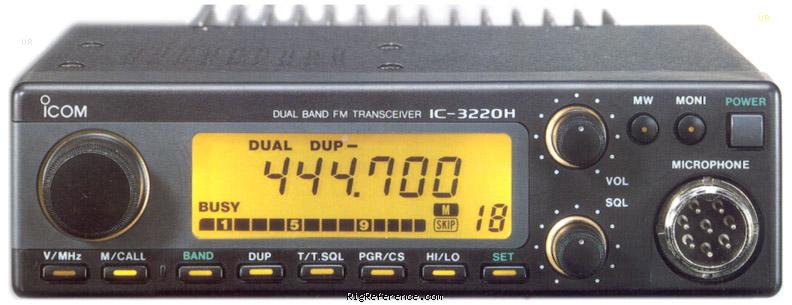

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | 144-146 / 430-440 MHz |
| Mode: | FM |
| RF Power output: | Hi: 25/25 W Lo2: 10/10 W Lo1: 1/1 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: 0.8-1.2 A TX: Max 8 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 140*40*195 mm |
| Weight: | 1.4 Kg |
| Manufactured: | Japan, 1990-199x (Discontinued) |
| Other: | 36 memories New price 1990 in Sweden: 5800:- SEK |
IC-3220 - Modalità trasponder
Cut D14 on LOGIC unit.
Set "SPT mode" (See Installation manual)
Push and Hold "Band SW".
Push "LOCK DW". (Flashing "SPT" and appear "L" on display.)
