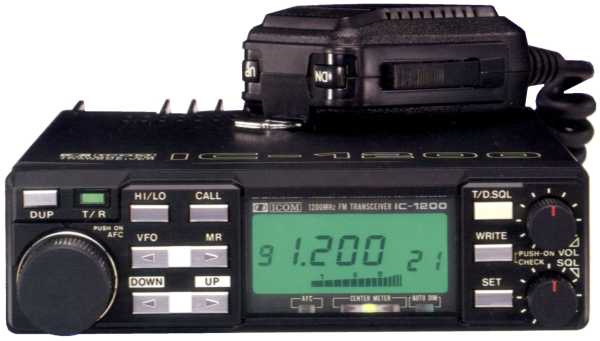

| Type: | Amateur UHF transceiver |
| Frequency range: | 1240-1300 MHz (12.5/25 KHz steps) |
| Mode: | FM |
| RF Power output: | Hi: 10 W Lo 1 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: 600-900 mA TX: Max 5.5 A |
| Impedance: | 50 ohms, N |
| Dimensions (H*W*D): | 140*40*196 mm |
| Weight: | 1.5 Kg |
| Manufactured: | Japan, 1987-19xx (Discontinued) |
| Other: | 21 memories |
 IC-1200_schematic_diagram.pdf | 325 kB |
| IC-1200_user_manual.pdf | 2291 kB |
