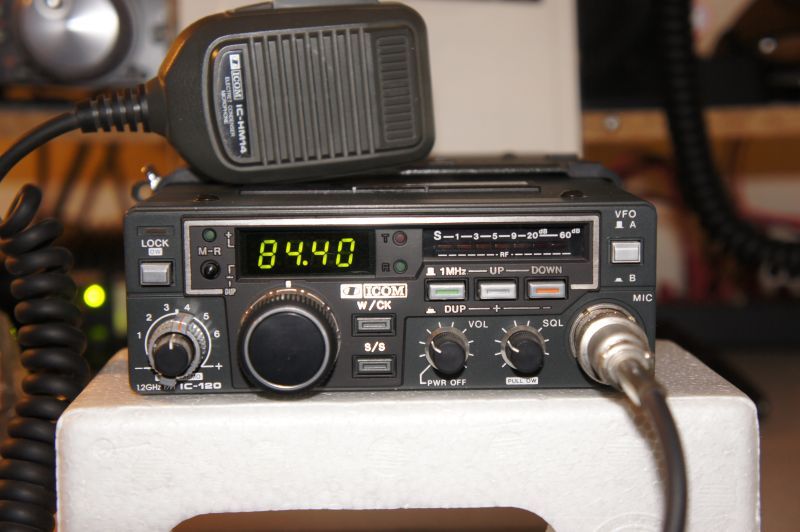

IC-120



Type: Amateur UHF transceiver
Frequency range: 1260-1300 MHz
(10 / 20 KHz steps, USA), (25 / 75 KHz steps, Europe)
Mode: FM (Max 16 KHz BW)
RF Power output: 1 W
Receiver system: Triple conversion superheterodyne
1st IF: 141 MHz
2nd IF: 10.75 MHz
3rd IF: 455 KHz
Sensitivity: 0.3 uV (12 dB SINAD)
Selectivity: 15 KHz (-6 dB), 30 KHz (-60 dB)
Image rejection: N/A
Voltage: 13.8 VDC +/-15%
Current drain: RX: 600-800 mA
TX: Max 2.5 A
Impedance: 50 ohms, N-type
Dimensions (H*W*D): 140*50*207 mm
Weight: 1.9 Kg
Manufactured: Japan, 1983-198x (Discontinued)
Other: 6 memories. RIT
Allegati:
Scarica questo file (IC-120_user_manual.pdf)IC-120_user_manual.pdf4093 kB
