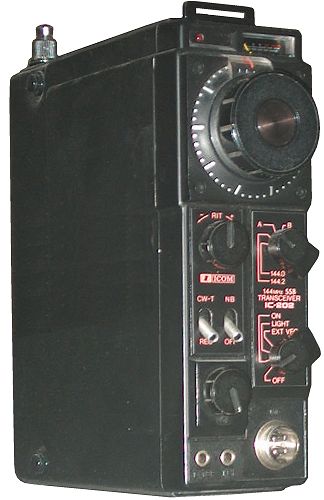

| Type: | Amateur VHF transceiver |
| Frequency range: | 144-146 MHz (VXO 200 KHz segments depending on crystals) |
| Mode: | USB/CW |
| RF Power output: | CW: 3 W USB: 3 W (PEP) |
| Receiver system: | Single conversion superheterodyne IF: 10.7 MHz |
| Sensitivity: | 0.5 uV ((S+N)/N 10 dB or better |
| Selectivity: | 2.4 KHz (-6 dB), 4.8 KHz (-60 dB) |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC +/-15% |
| Current drain: | RX: 90-250 mA TX: Max 750 mA |
| Impedance: | 50 ohms, SO-239 or built-in telescopic whip |
| Dimensions (W*H*D): | 61*183*162 mm |
| Weight: | 2 Kg (With batteries) |
| Manufactured: | Japan, 1976-197x (Discontinued) |
| Other: | NB, RIT. External VFO option New price 1976 in Sweden: 1780:- SEK |
 IC-202E_pcb.pdf | 419 kB |
| IC-202E_schematic_diagram.pdf | 153 kB |
| IC-202s_user_manual.pdf | 9294 kB |
 IC-202_modifications.zip | 3398 kB |
