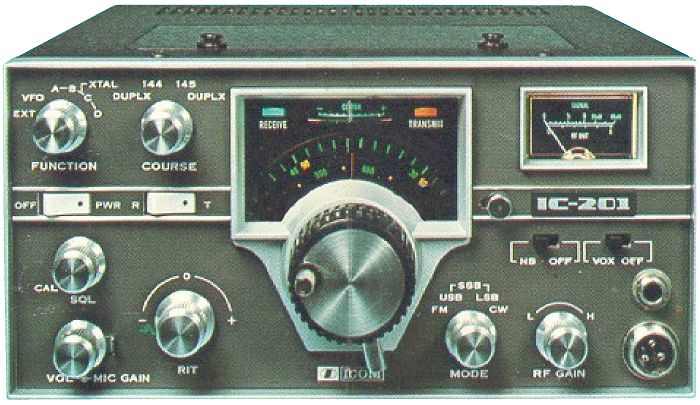

| Type: | Amateur VHF transceiver |
| Frequency range: | 144-146 MHz |
| Mode: | FM/SSB/CW |
| RF Power output: | 0.5-10 W |
| Receiver system: | N/A |
| Sensitivity: | FM: 0.4 uV (20 dB S/N) SSB/CW: 0.5 uV (10 dB S/N) |
| Selectivity: | FM: 16 KHz (-6 dB), 31 KHz (-60 dB) SSB/CW: 2.4 KHz (-6 dB), 4.8 KHz (-60 dB) |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC or mains |
| Current drain: | RX: Max ? A TX: Max ? A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 230*11*260 mm |
| Weight: | 7.2 Kg |
| Manufactured: | Japan, 1976-1979 (Discontinued) |
| Other: | NB. RIT. VOX New price 1976 in Sweden: 3850:- SEK |

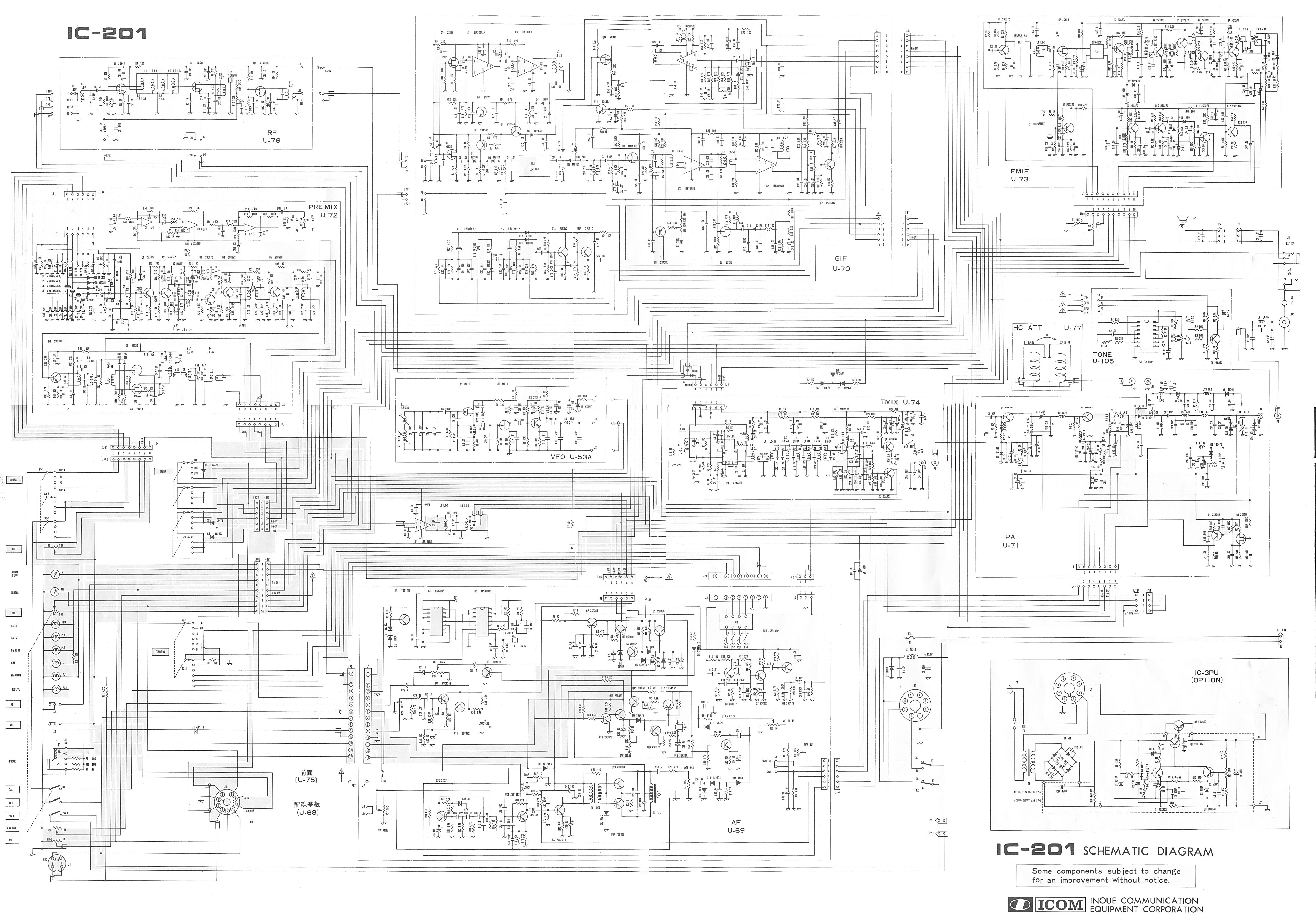

 IC-201_schematic_diagram.jpg | 2296 kB |
 IC-201_user_manual.pdf | 4460 kB |
