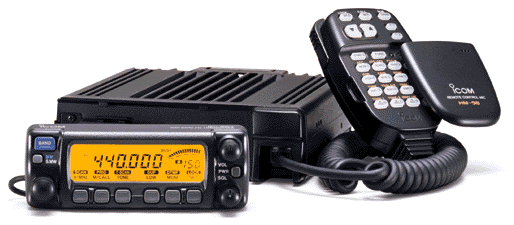

Bibanda VHF/UHF veicolare FM
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX: 144-146 / 430-440 MHz (Europe) RX: 118-174 / 400-479 MHz |
| Mode: | TX: FM RX: AM/FM |
| RF Power output: | Hi: 50/35 W Mid hi: 20/20 W Mid lo: 10/10 W Lo: 5/5 W |
| Receiver system: | N/A |
| Sensitivity: | 0.18 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB) 30 KHz (-60 dB) |
| Image rejection: | Better than 60 dB |
| Voltage: | 13.8 VDC |
| Current drain: | RX: 0.8-1 A TX: Max 12 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 140*40*185 mm |
| Weight: | 1.17 Kg |
| Manufactured: | Japan, 1997-200x (Discontinued) |
| Other: | 162 memories. CTCSS. 9K6 packet ready |
 IC-207H - manuale d'istruzioni italiano | 5636 kB |
| IC-207H_block_diagram.pdf | 328 kB |
 IC-207H_modifications.zip | 0.8 kB |
| IC-207H_schematic_diagram.pdf | 1239 kB |
| IC-207H_service_manual.pdf | 12566 kB |
| IC-207H_user_manual.pdf | 1163 kB |
