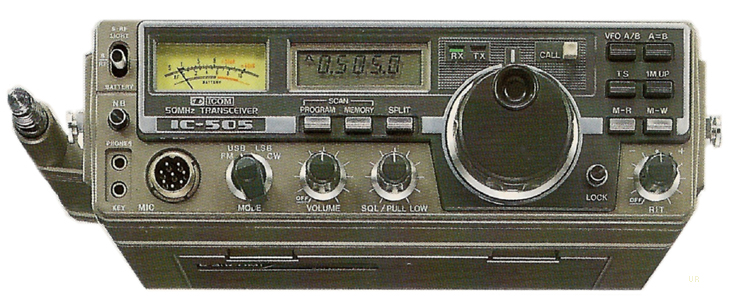

| Type: | Amateur VHF transceiver |
| Frequency range: | 50-54 MHz |
| Mode: | All-mode |
| RF Power output: | 3 W @ 6 VDC |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 6 VDC (4*LR20) or 13.8 VDC external |
| Current drain: | RX: 300 mA TX: Max 2.9 A (10 W) |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 230*76*189 mm |
| Weight: | 3.2 Kg (with batteries) |
| Manufactured: | Japan, 19xx-19xx (Discontinued) |
 IC-505_pcb.pdf | 3012 kB |
| IC-505_schematic_diagram.pdf | 2585 kB |
| IC-505_user_manual.pdf | 10772 kB |
