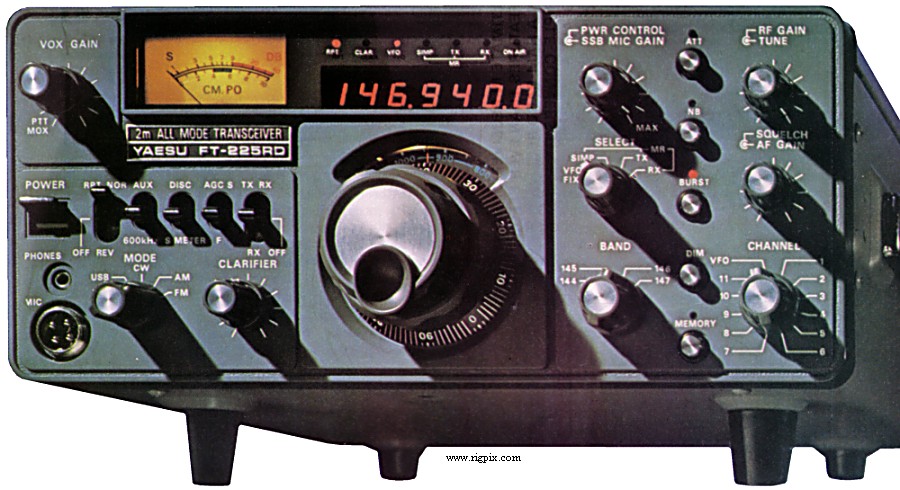

Yaesu FT-225RD - RICETRASMETTITORE VHF
| Type: | Amateur VHF transceiver |
| Frequency range: | 144-148 MHz |
| Mode: | AM/FM/SSB/CW |
| RF Power output: | FM/SSB/CW: 25 W AM: 15 W |
| Receiver system: | Dual conversion superheterodyne 1st IF: 10.7 MHz 2nd IF: 455 KHz |
| Sensitivity: | AM: 1 uV (10 dB S/N) FM: 0.35 uV (20 dB QS) SSB/CW: 0.3 uV (10 dB S/N) |
| Selectivity: | AM/SSB/CW: 2.3 KHz (-6 dB), 4.1 KHz (-60 dB) FM: 12 KHz (-6 dB), 28 KHz (-60 dB) |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC or mains |
| Current drain: | RX: 1.2 A TX: Max 6.5 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 280*125*315 mm |
| Weight: | 9 Kg |
| Manufactured: | Japan, 1978-19xx |
 FT-225RD - mod | 223 kB |
 FT-225RD - schema | 1848 kB |
| FT-225RD - user manual | 13654 kB |
