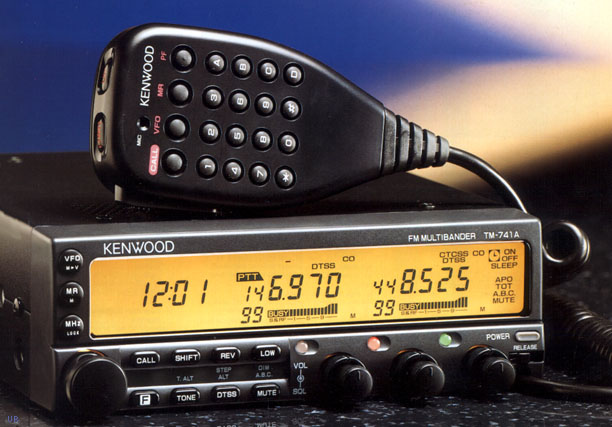

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | 144-146 / 430-440 MHz (10 m, 6 m or 23 cm options) |
| Mode: | FM |
| RF Power output: | Hi: 50/35 W Mid: 10/10 W Lo: 5/5 W |
| Receiver system: | Dual conversion superheterodyne 1st IF: 10.7 MHz (2 m), 21.6 MHz (70 cm) 2nd IF: 455 KHz |
| Sensitivity: | 0.16 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB), 24 KHz (-60 dB) |
| Image rejection: | N/A |
| Voltage: | 11.7-15.8 |
| Current drain: | RX: Max 1.2 A TX: Max 11.5 A |
| Impedance: | 50 ohms, 1*SO-239 + 1*N-type |
| Dimensions (W*H*D): | 150*50*175 mm |
| Weight: | 1.6 Kg |
| Manufactured: | Japan, 1992-1994 (Discontinued) |
| Other: | Triple RX |
 TM-741_manuale_utente_italiano.pdf | 2861 kB |
| TM-741_service_manual.pdf | 15136 kB |
