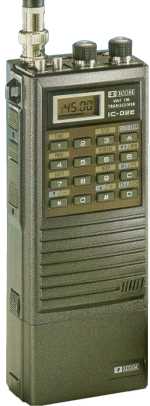

Mitico portatile VHF
| Type: | Amateur VHF transceiver |
| Frequency range: | 144-146 MHz (12.5/25 KHz steps) |
| Mode: | FM |
| RF Power output: | Hi: 3-5 W (depending on voltage) Lo: 0.5 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 5.5-16 VDC |
| Current drain: | RX: Max 140 mA TX: Max 1.2 A |
| Impedance: | 50 ohms, BNC |
| Dimensions (W*H*D): | 65*117*35 mm (without battery) |
| Weight: | 495 gr (with BP-3) |
| Manufactured: | Japan, 1983-1990 (Discontinued) |
| Other: | 10 memories |
 IC-A02 User Manual | 4006 kB |
| IC-02_manuale_utente_italiano.pdf | 1086 kB |
 IC-02_modifications.zip | 2 kB |
| IC-02_schematic_diagram.pdf | 340 kB |
| IC-A02 Service Manual | 1882 kB |
