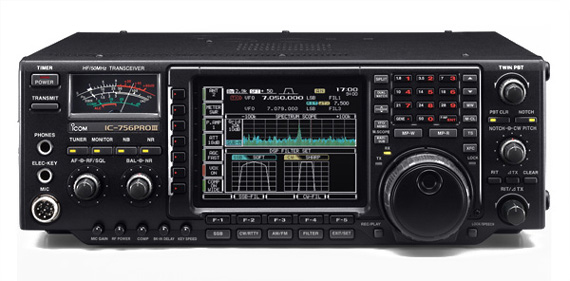

RICETRASMETTITORE HF/50 MHz ALL MODE
| Type: | Amateur HF |
| Frequency range: | TX: 10-160 m + WARC / 50-54 MHz RX: 0.03-60 MHz |
| Mode: | AM/FM/SSB/CW/RTTY |
| RF Power output: | SSB/CW/FM/RTTY: 5-100/5-100 W (100% duty cycle) AM: 5-40/5-40 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | 70 dB |
| Voltage: | 13.8 VDC +/- 15% |
| Current drain: | RX: Max 3.5 A TX: Max 23 A |
| Impedance: | 50 ohms, 2*SO-239 |
| Dimensions (W*H*D): | 340*111*285 mm |
| Weight: | 9.6 Kg |
| Manufactured: | Japan, 2003-200x |
| Other: | 32 bit IF-DSP. Built-in RTTY demodulator and auto-ATU. IP3 = +30 dBm, Twin RX New price 2008 in Sweden: 29995:- SEK |
 IC-756PROIII - Brochoure | 1598 kB |
| IC-756PROIII - La scheda del trasmettitore | 720 kB |
| IC-756PROIII_manuale_utente_italiano.pdf | 8722 kB |
| IC-756PROIII_service_manual.pdf | 20063 kB |
| IC-756PROIII_user_manual.pdf | 3493 kB |
