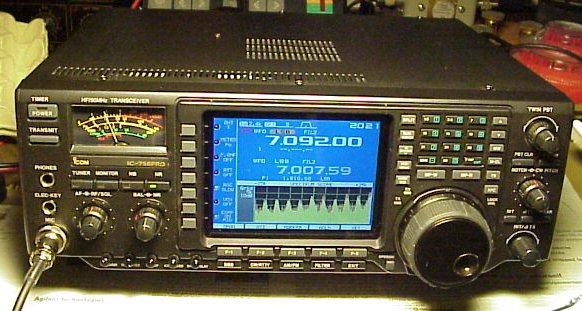

| Type: | Amateur HF/VHF transceiver |
| Frequency range: | TX: 10-160 m + WARC/50-54 MHz RX: 0.03-60 MHz |
| Mode: | AM/FM/SSB/CW/RTTY |
| RF Power output: | 5-100/5-100 W (AM: 5-40 W) |
| Receiver system: | Triple-conversion superheterodyne 1st IF: 64.455 MHz 2nd IF: 455 KHz 3rd IF: 36 KHz |
| Sensitivity: | AM (10 dB S/N) 0.5-1.8 MHz: 13 uV 1.8-30 MHz: 2 uV (Pre-amp 1 on) 50-54 MHz: 1 uV FM (12 dB SINAD) 28-30 MHz: 0.5 uV (Pre-amp 1 on) 50-54 MHz: 0.32 uV (Pre-amp 2 on) SSB/CW/RTTY (10 dB S/N) 1.8-30 MHz: 0.16 uV (Pre-amp 1 on) 50-54 MHz: 0.13 uV (Pre-amp 2 on) |
| Selectivity: | AM (BW=6 KHz) >6 KHz (-6 dB), <15 KHz (-60 dB) FM (BW=15 KHz) >12 KHz (-6 dB), <20 KHz (-60 dB) SSB/RTTY (BW=2.4 KHz) >2.4 KHz (-6 dB), <2.8 KHz (-60 dB) CW (BW=500 Hz) >500 Hz (-6 dB), <700 Hz (-60 dB) |
| Image rejection: | >70 dB |
| Voltage: | 13.8 VDC +/- 15% |
| Current drain: | RX: Max 3.5 A TX: Max 23 A |
| Impedance: | 50 ohms, 2*SO-239 |
| Dimensions (W*H*D): | 340*111*285 mm |
| Weight: | 9.6 Kg |
| Manufactured: | Japan, 2000-2001 (Discontinued) |
| Other: | 99 memories. IF-DSP. Built-in auto-AT (HF: 16.7-150 ohms / 6 m: 20-125 ohms) Built-in keyer and RTTY demodulator. Twin RX |
