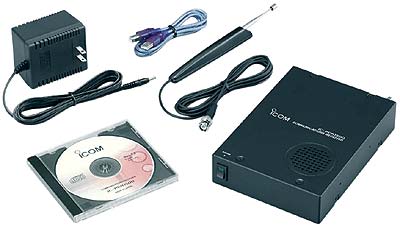

ricevitore (scanner) ampio spettro gestibile da PC
| Type: | HF/VHF/UHF/SHF receiver/scanner |
| Frequency range: | 0.01-3300 MHz |
| Mode: | AM/FM/WFM/SSB/CW (No AM/SSB/CW above 1300 MHz) |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 12 VDC +/- 15% |
| Current drain: | Max 1.25 A |
| Impedance: | 50 ohms, BNC |
| Dimensions (W*H*D): | Box: 146*41*206 mm Panel: 111*40*27 mm |
| Weight: | Box: 1.2 Kg Panel: 200 gr |
| Manufactured: | Japan, 2005-200x |
| Other: | CTCSS/DTCS. DSP option (UT-106). |
 IC-PCR1500 - USER MANUAL | 8925 kB |
| IC-PCR1500_brochure.pdf | 680 kB |
