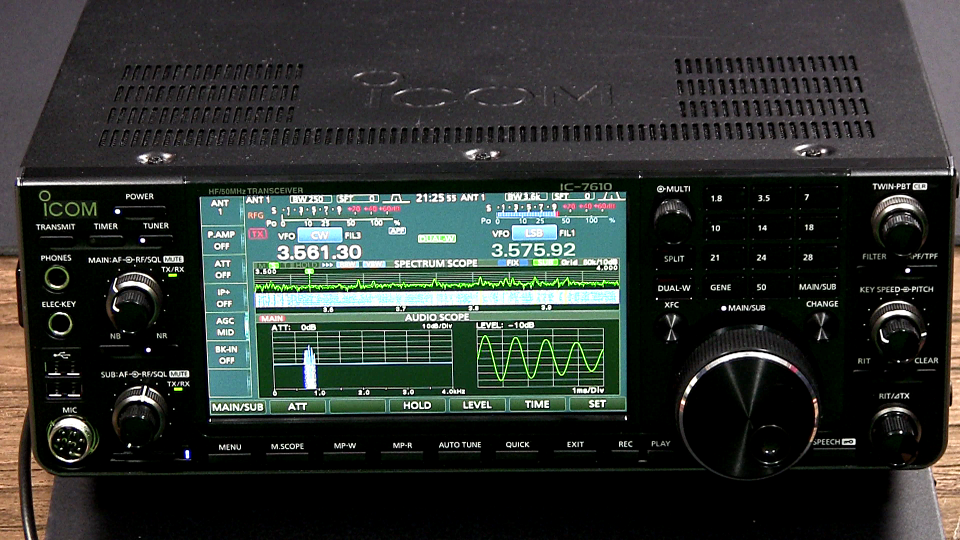

IC-7610 - Ricetrasmettitore HF/50MHz 100 watts - full SDR - Con interfaccia lan che permette il controllo remoto tramite il software RS-BA1

Dopo il successo del IC-7300, ICOM lancia (12.2017) un nuovo transceiver di fascia superiore che sostituirà il già validissimo IC-7600

Manuale Italiano base IC-7610 - Manuale avanzato

Display ad alta definizione in tempo reale TFT
interfaccia touch
HF + 50 MHz
100 W Potenza
dual watch
Antenna integrata Tuner
Collegamento per monitor esterno


George e Tommy, di Amateur Logic recensiscono l'IC-7610 con Ray Novak di Icom. Durante la loro revisione discutono le caratteristiche chiave della radio e la confrontano con IC-7600 e IC-7300.



Icom 7610 ARI Trento





GENERAL
Type: Amateur HF/VHF transceiver
Frequency range: TX: 10-160 m + WARC (also 137 KHz for EU version) / 6 m
RX: 0.03-60 MHz
Tuning steps: 1 / 100 Hz, 1 / 5 / 9 / 10 / 12.5 / 20 / 25 KHz
Mode: AM/FM/SSB/CW/RTTY/PSK
Channels/memory management: 99 regular
2 scan edge
Repeater shift/offset: HF: -100 KHz (Quick split default. Adjustable)
6 m: -500 KHz (Quick split default. Adjustable)
Power supply: 13.8 VDC ±15%
Current drain/power consumption: RX: 3-3.5 A
TX: Max 23 A
Antenna impedance/connector: 50 ohms / 2*SO-239
(16.7-150 ohms with ATU)
Dimensions (W*H*D): 340*118*277 mm (13.4*4.6*10.9")
Weight: 8.5 Kg (18.7 lbs)
Other features: 7 inch touch screen display (800*400 pixels). True dual receivers.
Diversity reception. Transverter port. LAN port. 4*USB3 ports.
Video monitor output. RTTY decoding. Keyer. Auto ATU and more.


RECEIVER SECTION
Receiver system: Direct RF sampling superheterodyne
IF: 12 KHz
Sensitivity:

General version

AM (10 dB S/N. Soft filter)
0.1-1.8 MHz: 6.3 uV (Preamp 1 on)
1.8-30 MHz: 2 uV (Preamp 1 on)
6 m: 1 uV (Preamp 2 on)
FM (12 dB SINAD. Soft filter)
28-29.7 MHz: 0.5 uV (Preamp 1 on)
6 m: 0.32 uV (Preamp 2 on)
SSB/CW (10 dB S/N. Soft filter)
1.8-30 MHz: 0.16 uV (Preamp 1 on)
6 m: 0.13 uV (Preamp 2 on)

European version

AM (12 dB SINAD. BW=4 KHz. 60% modulation. Soft filter)
1.8-3 MHz: 16 dBuV emf (Preamp 1 on)
3-30 MHz: 6 dBuV emf (Preamp 1 on)
6 m: 0 dBuV emf (Preamp 2 on)
FM (12 dB SINAD. BW=7 KHz. 60% modulation. Soft filter)
28-29.7 MHz: 0 dBuV emf (Preamp 1 on)
6 m: -6 dBuV emf (Preamp 2 on)
SSB (12 dB SINAD. BW=2.4 KHz. Soft filter)
1,8-3 MHz: 10 dBuV emf (Preamp 1 on)
3-30 MHz: 0 dBuV emf (Preamp 1 on)
6 m: -6 dBuV emf (Preamp 2 on)
Selectivity: AM (Filter: Sharp, BW: 6 KHz)
6 KHz (-6 dB), 15 KHz (-60 dB)
FM (Filter: Sharp, BW: 15 KHz)
12 KHz (-6 dB), 20 KHz (-60 dB)
SSB (Filter: Sharp, BW: 2.4 KHz)
2.4 KHz (-6 dB), 3.6 KHz (-60 dB)
CW (Filter: Sharp, BW: 500 Hz)
500 Hz (-6 dB), 700 Hz (-60 dB)
RTTY (Filter: Sharp, BW: 500 Hz)
500 Hz (-6 dB), 700 Hz (-60 dB)
Image rejection: 70 dB (except for ADC aliasing)
AF output power/speaker: 2 W at 10% distortion / 8 ohms
External speaker connector: 3.5 mm, 4-8 ohms


TRANSMITTER SECTION
RF output power: 1-100 W (AM 1-25 W)
Modulation system: AM: Low power modulation
FM: Reactance modulation
SSB: PSN modulation
FM deviation: Max ±5 KHz
Spurious emissions: HF: Less than -40 dB (out-of-band)
6 m: Less than -60 dB (out-of-band)
Microphone impedance/connector: 600 ohms / 8-pin


MISCELLANEOUS
Manufactured: Japan, 2017-20xx
Additional info: New price 2017 in Sweden: 41995:- SEK
New price 2018 in Sweden: 39995:- SEK



Reviews:
Options/Accessories:
AH-2B
AH-4
AH-5NV
AH-710
AH-740
HM-219
IC-PW1
IC-PW1 Euro
MB-121
OPC-420
OPC-2321
PS-126
RC-28
RS-BA1
SM-30
SM-50
SP-23
SP-33
SP-34
Mobile antenna element. Length: 2.5 m (8.2 ft)
External antenna tuner. HF/6 m
NVIS kit for AH-740
Folded dipole antenna. 2-30 MHz.
Automatic tuning mobile antenna
Hand microphone
HF/6 m 1 KW linear amplifier
HF/6 m 1 KW linear amplifier. European version
Carrying handle
Control cable for AH-4
Control cable of AH-740
DC power supply. 13.8 VDC, 25 A
Remote encoder. Handy for use with RS-BA1
IP remote control software
Desk microphone
Desk microphone with up/down switches
External speaker with high/low cut. 2 W, 8 ohms
External speaker
External speaker with high/low cut. 3 W, 8 ohms
