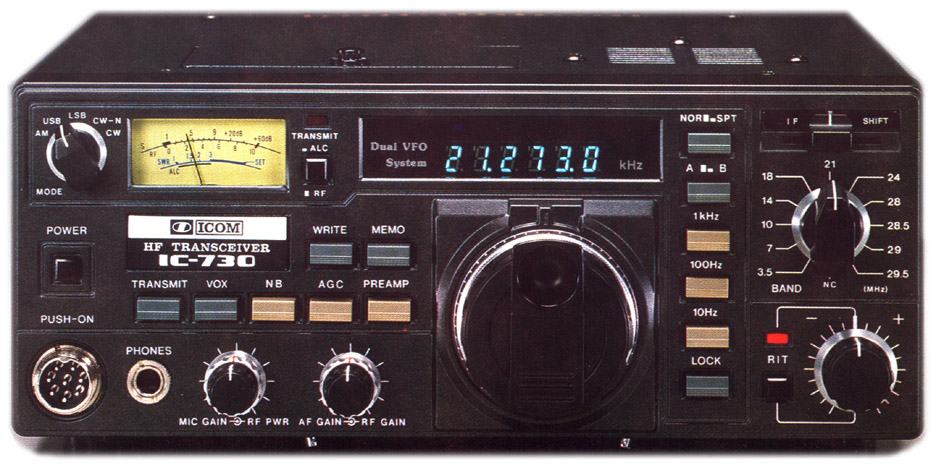

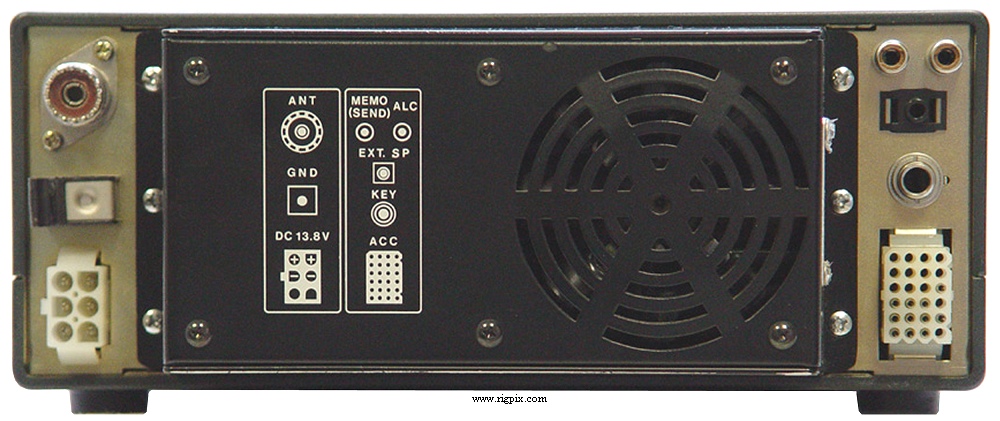

The Icom IC-730 is a compact, easy to use HF radio covering 80 through 10 meters with 200 watts PEP input SSB/CW and 40 watts AM. Modes include SSB, CW and AM. Enhancements include: dual digital VFOs, and noise blanker. The advanced, quad conversion receiver section includes selectable AGC and a preamp. You get one memory per band. Frequency coverage is: 3.5-4, 7-7.3, 10-10.5 (receive), 14-14.35, 18-18.5, 21-21.45, 24.5-25 and 28-29.7 MHz. There is a built-in speaker in the top panel. The rear panel features an SO-239 antenna jack, speaker jack, 1/4 inch key jack and accessory port. An access door on the top panel allows for additional radio settings and installation of optional EX-195. This radio requires 13.8 VDC at 20 amps.
| GENERAL | |
| Type: | Amateur HF transceiver |
| Frequency range: | 10-80 m + WARC 3.5-4.0 MHz 7.0-7.3 MHz 10.0-10.5 MHz (RX only) 14.0-14.35 MHz 18.0-18.5 MHz (RX only) 21.0-21.45 MHz 24.5-25.0 MHz (RX only) 28.0-29.7 MHz |
| Tuning steps: | 10 / 100 Hz 1 KHz |
| Mode: | AM/SSB/CW |
| Channels/memory management: | 1 regular per band segment RAM storage, relies on external power |
| Repeater shift/offset: | No |
| Power supply: | 13.8 VDC ±15% |
| Current drain/power consumption: | RX: ? mA TX: Max 20 A |
| Antenna impedance/connector: | 50 ohms / SO-239 |
| Dimensions (W*H*D): | 241*94*275 mm (9.49*3.7*10.83") |
| Weight: | 6.4 Kg (14.11 lbs) |
| Other features: | PBT, VOX, NB, SWR-meter |
| RECEIVER SECTION | |
| Receiver system: | Quadruple conversion superheterodyne 1st IF: 39.7315 MHz 2nd IF: 9.0115 MHz 3rd IF: 455 KHz 4th IF: 9.0115 MHz |
| Sensitivity: | AM: 0.6 uV (10 dB S+N/N) SSB/CW: 0.3 uV (10 dB S+N/N) |
| Selectivity: | AM: 6 KHz (-6 dB), 18 KHz (-60 dB) SSB/CW: 2.4 KHz (-6 dB), 4.8 KHz (-60 dB) CW-N: 600 Hz (-6 dB), 1.5 KHz (-60 dB) (With optional crystal filter) |
| Image rejection: | |
| AF output power/speaker: | 2 W at ?% distortion / 8 ohms |
| External speaker connector: | |
| TRANSMITTER SECTION | |
| RF output power: | AM: 5-25 W SSB/CW: 5-100 W |
| Modulation system: | |
| Max FM deviation: | No FM |
| Spurious emissions: | Less than -50 dB |
| Microphone impedance/connector: | 1.3 kohm / 8-pin (Input level 120 mV typical) |
| MISCELLANEOUS | |
| Manufactured: | Japan, 1981-198x (Discontinued) |
Options/Accessories:
| AH-1 BC-10A EX-195 EX-202 EX-203 EX-205 FL-30 FL-44 FL-45 HM-10 HP-1 IC-2KL MB-5 PS-15 SM-5 SP-3 |
3.5-28 MHz mobile antenna Memory backup AC power supply Marker unit LDA unit for automatic band switching CW audio filter, 150 Hz (-6 dB) TRV unit for transverter switching SSB Pass band tune filter SSB filter, IF: 455 KHz CW narrow filter Scanning microphone Headphones 500 W solid state linear amplifier Mobile mounting bracket AC power supply Electret condenser type desk microphone External speaker |
 ic730_manual.pdf | 3305 kB |
