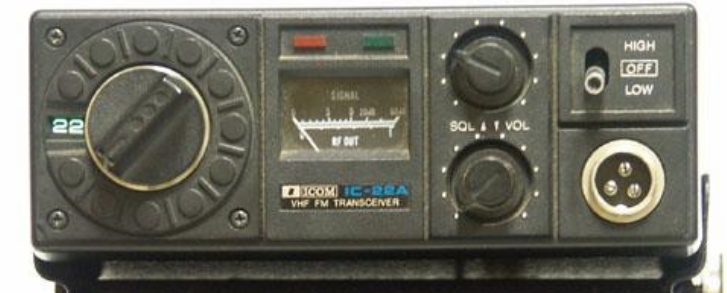

IC-22A



Type: Amateur VHF transceiver
Frequency range: 144-146 MHz
Mode: FM
RF Power output: Hi: 10 W
Lo: 1 W
Receiver system: N/A
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.8 VDC
Current drain: RX: ? mA
TX: Max ? A
Impedance: 50 ohms, SO-239
Dimensions (W*H*D): 156*58*205 mm
Weight: 1.7 Kg
Manufactured: Japan, 19xx-19xx (Discontinued)
Other: 22 channels, XTAL
Allegati:
Scarica questo file (IC-22A-user-manual.pdf)IC-22A-user-manual.pdf7142 kB
