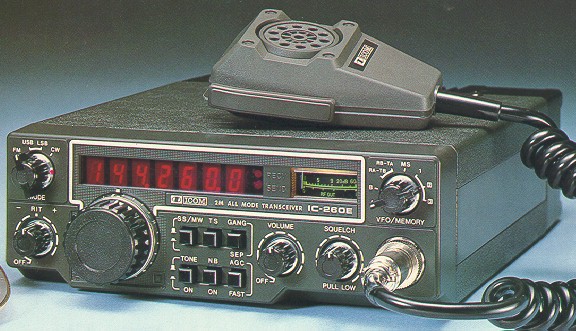

| Type: | Amateur VHF transceiver |
| Frequency range: | 144-146 MHz (5/1/0.1 KHz steps) |
| Mode: | FM/SSB/CW |
| RF Power output: | Hi: 10 W Lo: 1 W |
| Receiver system: | Dual conversion superheterodyne (FM) 1st IF: 10.75 MHz 2nd IF: 455 KHz Single conversion superheterodyne (SSB/CW) IF: 10.75 MHz |
| Sensitivity: | FM: 0.6 uV (20 dB noise quieting) SSB/CW: 0.5 uV (10 dB S+N/N) |
| Selectivity: | FM: 15 KHz (-6 dB), 30 KHz (-60 dB) SSB/CW: 2.4 KHz (-6 dB), 4.8 KHz (-60 dB) |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max 0.8 A TX: Max 3.1 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 185*64*223 mm |
| Weight: | 2.7 Kg |
| Manufactured: | Japan, 1979-198x (Discontinued) |
| Other: | 3 memories. NB. |
 IC-260_modifications.zip | 1 kB |
 IC-260 - PCB | 766 kB |
| IC-260 - Schema elettrico | 549 kB |
| IC-260 - User manual | 4400 kB |
