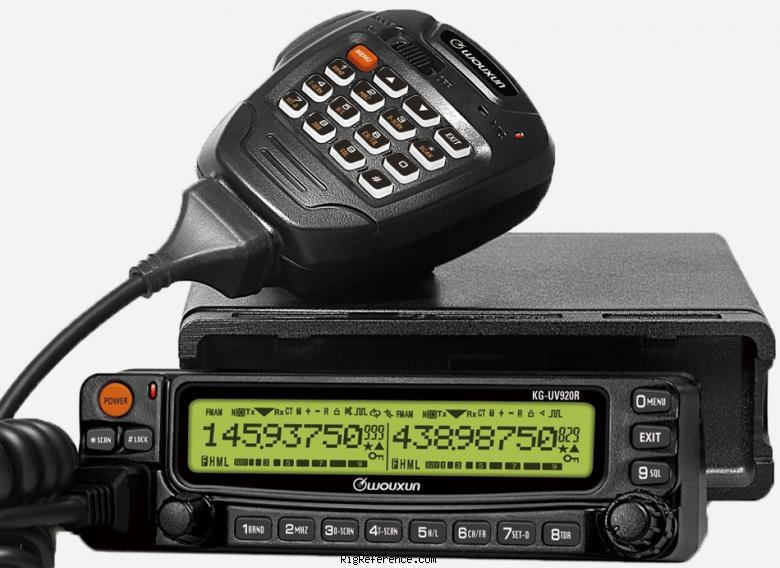

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX: 2 m/70 cm RX: 0.15-30 / 65-220 / 400-520 MHz |
| Mode: | TX: FM/NFM RX: AM/FM/NFM |
| RF Power output: | Hi: 50/40 W Mid: 25/20 W Lo: 5/5 W |
| Receiver system: | Dual conversion superheterodyne 1st IF: ? MHz 2nd IF: ? KHz |
| Sensitivity: | 0.2 uV (12 dB SINAD) |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC +/-15% |
| Current drain: | RX: 500 mA (Standby) TX: Max 9 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? Kg |
| Manufactured: | China, 2011-20xx |
| Other: | 999 memories. Detachable front panel. Cross-band repeater DTMF-mike. Caller ID and more! Twin RX. |
 KG-UV920R_User's_Manual.pdf | 9416 kB |
