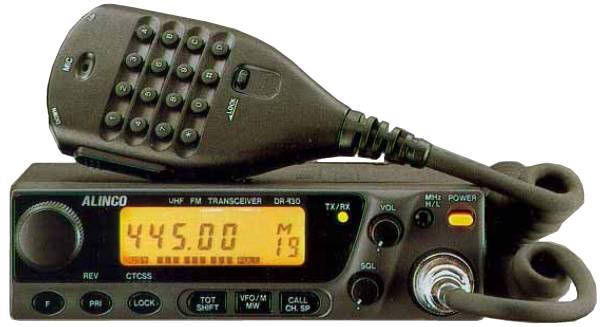

| Type: | Amateur UHF transceiver |
| Frequency range: | 430-440 MHz (Europe) 440-450 MHz (USA) |
| Mode: | FM |
| RF Power output: | Hi: 50 W Lo: 5 W |
| Sensitivity: | -16 dBu for 12 dB SINAD |
| Selectivity: | More than 6 KHz (-6 dB), Less than 15 KHz (-60 dB) |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: < 800 mA (squelched) TX: 3.5-10.5 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 140*40*154 mm |
| Weight: | 0.86 Kg |
| Manufactured: | 19xx-19xx |
 Alinco-DR-130-330-430_user_manual.pdf | 399 kB |
