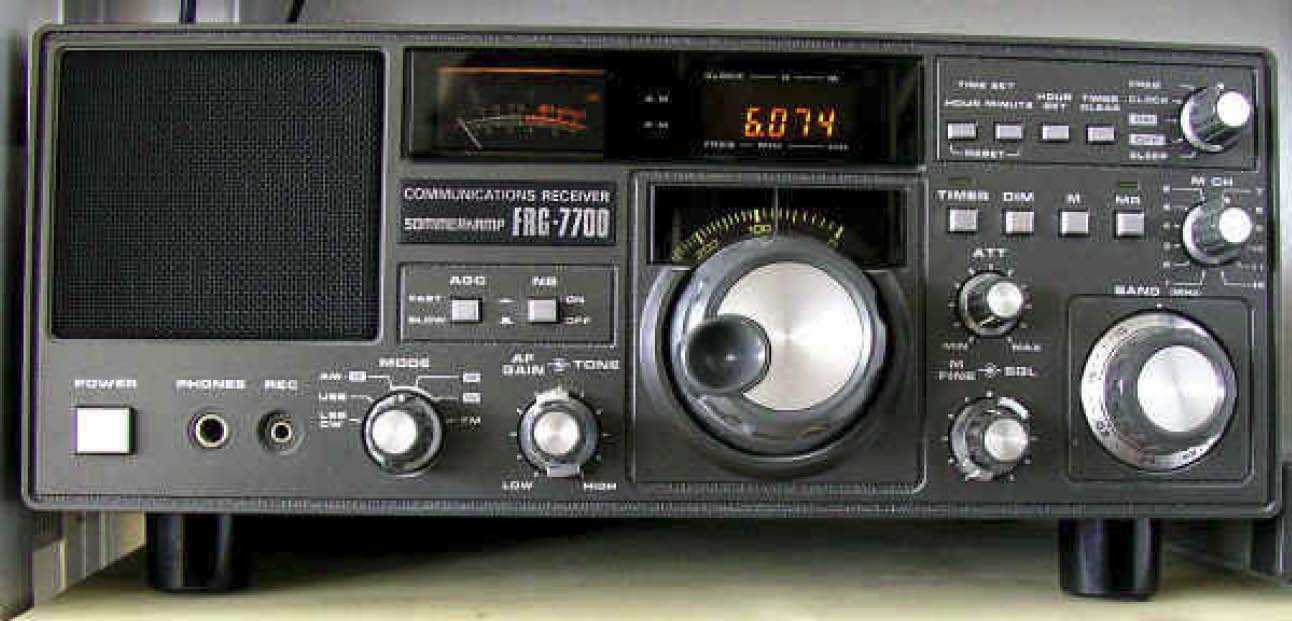

Ricevitore HF
| Type: | HF receiver |
| Frequency range: | 0.15-30 MHz |
| Mode: | AM/FM/SSB/CW |
| Receiver system: | Dual conversion superheterodyne 1st IF: 48.055 MHz 2nd IF: 455 KHz |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | Mains |
| Current drain: | ? mA |
| Impedance: | <2 MHz=500 ohms >2 MHz=50 ohms |
| Dimensions (W*H*D): | 334*129*225 mm |
| Weight: | 6 Kg |
| Manufactured: | Japan, 1981-1984 (Discontinued) |
| Other: | Built-in clock/timer |
 FRG-7700_manuale_utente_italiano.pdf | 5205 kB |
 FRG-7700_modifiche.zip | 125 kB |
| FRG-7700_service_manual.pdf | 14459 kB |
| FRG-7700_user_manual.pdf | 6748 kB |
