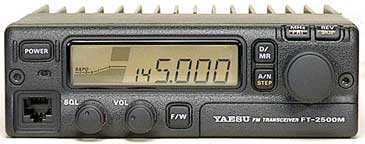

| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 144-146 MHz (Europe) TX: 144-148 MHz (USA) RX: 140-174 MHz |
| Mode: | FM |
| RF Power output: | Hi: 50 W Mid: 20 W Lo: 5 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: ? A TX: ? A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 160*50*180 mm |
| Weight: | 1.5 Kg |
| Manufactured: | 199x-2000 (Discontinued) |
| Other: | 31 memories |
 FT-2500M - schema | 978 kB |
| FT-2500M - user manual | 4569 kB |
| FT-2500M - manuale utente italiano | 6260 kB |
