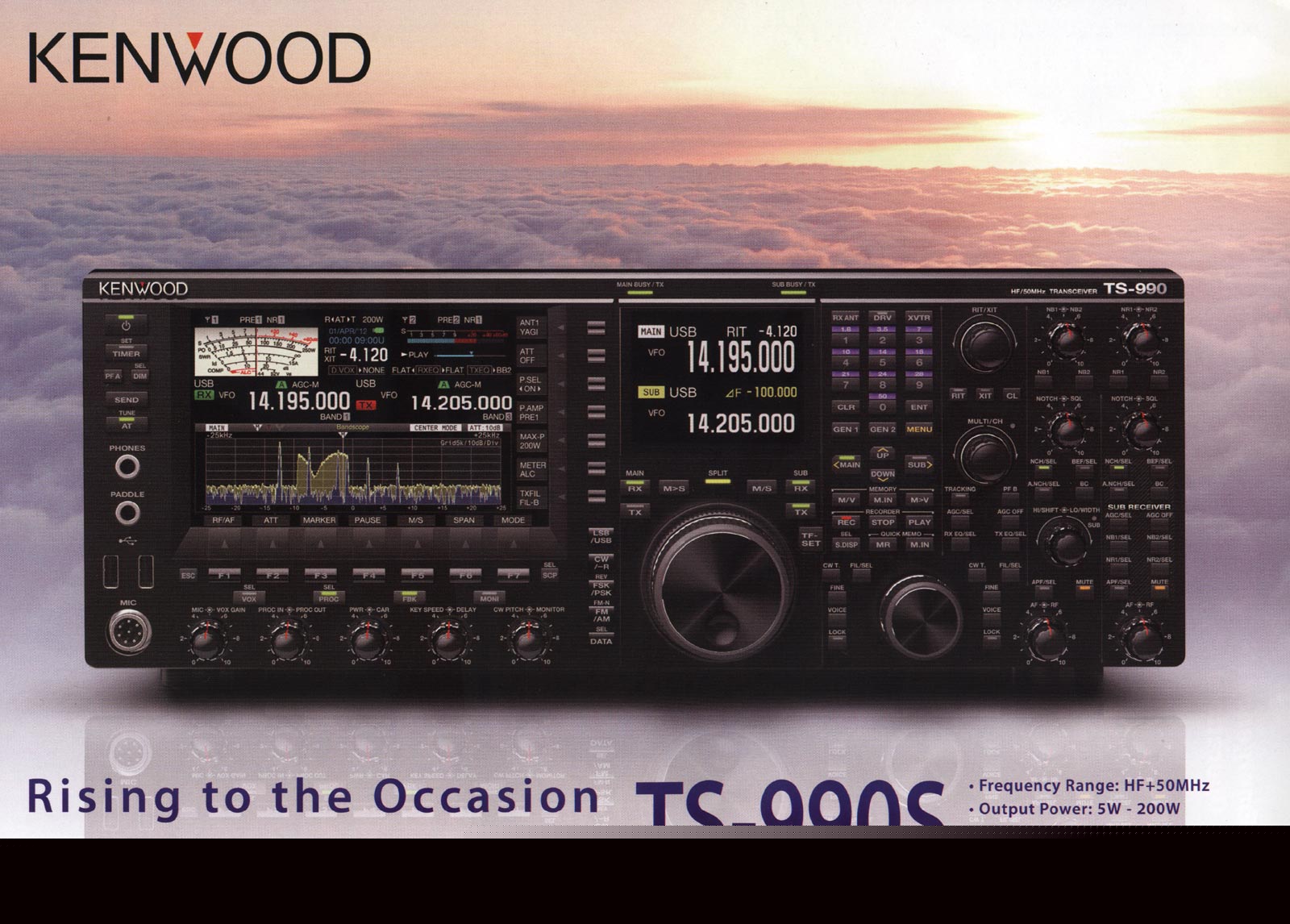

KENWOOD TS-990S - RTX HF + 50 MHZ BASE RTX HF+50 MHZ BASE 200W - Rtx HF+50 Mhz, potenza uscita 200W, alimentazione entrocontenuta 220v, accordatore automatico, porte COM, USB e LAN
| Type: | Amateur HF/VHF transceiver |
| Frequency range: | 10-160 m + WARC / 50-54 MHz |
| Mode: | AM/FM/SSB/CW/FSK/PSK |
| RF Power output: | 5-200 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | Mains |
| Current drain: | RX: ? A TX: ? A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? Kg |
| Manufactured: | 2012-20xx |
| Other: | Color TFT with spectrum scope. Built-in keyer and auto AT IF-DSP. Twin RX. RS-232, USB and LAN ports |
| Stazione Base Ammiraglia HF/6m |
| 200 watts in uscita dall Amplficatore Push-pull 50V |
| 40dBm Punto di Intercetto RX |
| RX Principale - Down Conversion su tutte le bande 270Hz/500Hz/2.7kHz/6kHz/15kHz Roofing Filters |
| RX Secondaria "Sub" - Down Conversion sulle bande 15/20/40/80/160M(come l'RX del TS-590S)Roofing Filters 500Hz/2.7kHz |
| 2 x display TFT Display a colori |
| 3 processori DSP |
| Decoder/Encoder incorporato di FSK/RTTY/PSK31. Aggiornamento QPSK a seguire |
| 4 x prese Antenna SO-239 più Jack RCA jack solo ingresso antenna RX e uscite esterne RX. Funzione Display con "Nome Antenna" per le 4 porte SO-239 |
| Connettività::- 10MHz Ref Oscillatore I/O (BNC) External ATU port Keyboard In COM Port ( 9-pin femmina) Straight Key Paddle/external Keyer 2 x USB-A & 1 x USB-B ports "ACC-2" Data/audio connettore "Remote" linear connector Analogue Meter Jack 3.5 mm "DRV" low-level LF drive Optical SPDIF I/O - 2 speaker prese DVI-I Dual x speaker esterno-link video porta LAN |
