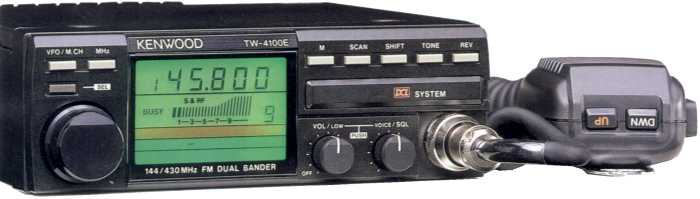

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | 144-146 / 430-440 MHz (5/10/12.5 KHz steps) |
| Mode: | FM |
| RF Power output: | Hi: 45 / 35 W Lo: 5 / 5 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 11-16 VDC |
| Current drain: | RX: 0.7 A TX: Max 9.5 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 150*50*200 mm |
| Weight: | 1.6 Kg |
| Manufactured: | 1987-19xx (Discontinued) |
| Other: | 10 memories |
 TW-4100_service_manual.pdf | 7157 kB |
| TW-4100_user_manual.pdf | 26974 kB |
