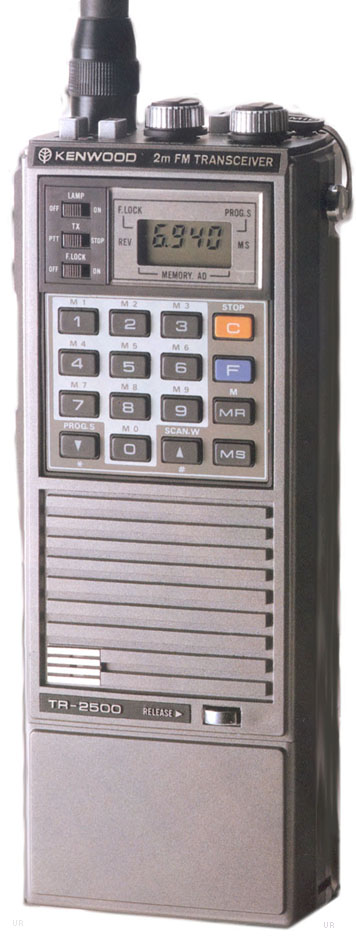

| Type: | Amateur VHF transceiver |
| Frequency range: | 144-146 MHz (Europe) 143.9-149 MHz (USA) |
| Mode: | FM |
| RF Power output: | Hi: 2.5 W Lo: 0.3 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 8.4 VDC +/- 25% |
| Current drain: | RX: 30-? mA TX: 400-800 mA |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 66*168*40 mm |
| Weight: | 540 gr (with batteries) |
| Manufactured: | 1981-198x (Discontinued) |
 TR-2500_user_manual.pdf | 4677 kB |
