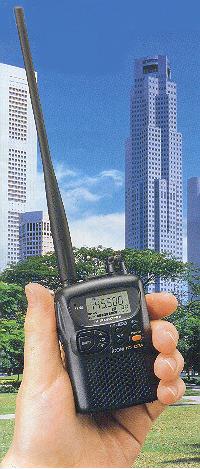

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX: 144-146 / 430-440 MHz RX: 30-1300 MHz |
| Mode: | TX: FM RX: AM/FM/WFM |
| RF Power output: | 350/300 mW |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 3 VDC |
| Current drain: | RX: 38-170 mA TX: Max 440 mA |
| Impedance: | 50 ohms, SMA |
| Dimensions (W*H*D): | 58*86*27 mm |
| Weight: | 170 gr (incl battery and antenna) |
| Manufactured: | Japan, 1998-2001 (Discontinued) |
 IC-Q7_modifications.zip | 147 kB |
 IC-Q7_schematic_diagram.pdf | 566 kB |
| IC-Q7_service_manual.pdf | 8941 kB |
| IC-Q7E - manuale utente italiano | 386 kB |
| IC-Q7E - User Manual | 665 kB |
