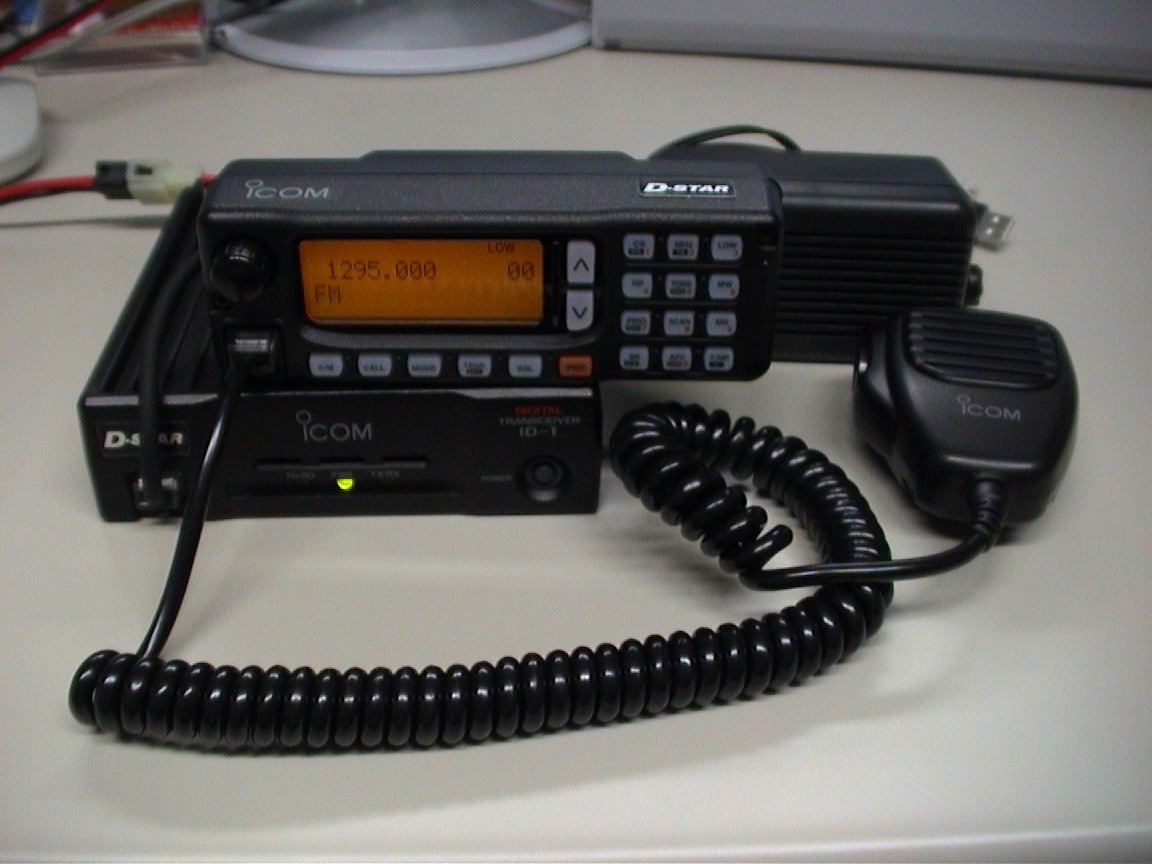

| Type: | Amateur UHF transceiver |
| Frequency range: | 1240-1300 MHz (5 / 6.25 / 10 / 12.5 / 20 / 25 / 50 / 100 KHz steps) |
| Mode: | FM/DV (GMSK 4.8 kbps voice/128 kbps data) |
| RF Power output: | Hi: 10 W Lo: 1 W |
| Receiver system: | ? conversion superheterodyne 1st IF: ? MHz 2nd IF: ? KHz |
| Sensitivity: | FM: 0.18 uV (12 dB SINAD) 4.8 kbps voice: 0.35 uV (BER 1x10-2) 128 kbps data: 1.58 uV (BER 1x10-2) |
| Selectivity: | FM: 12 KHz (-6 dB), 30 KHz (-60 dB) GMSK 4.8 kbps: 6 KHz (-6 dB) GMSK 128 kbps: 140 KHz (-6 dB) |
| Image rejection: | 50 dB |
| Voltage: | 13.8 VDC +/-15% |
| Current drain: | RX: Max 1.5 A TX: Max 7 A |
| Impedance: | 50 ohms, N |
| Dimensions (W*H*D): | Panel: 150*50*50 mm Transceiver: 141*40*166 mm |
| Weight: | Panel: 220 gr Transceiver: 1.2 Kg |
| Manufactured: | Japan, 200x-200x |
| Other: | D-Star concept. 100 memories. TCP/IP, E-mail, video & picture capable. Via a 10BASE-T connector, it can be interfaced with the internet. New price 2008 in Sweden: 12000:- SEK |
 ID-1 - user manual | 2608 kB |
