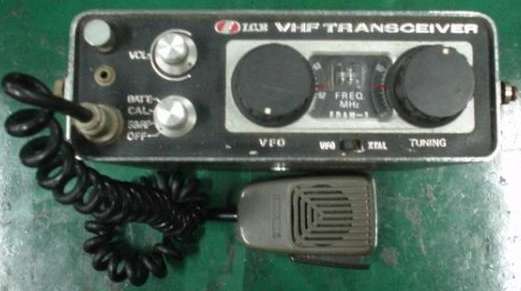

Icom FDAM-3

Uno dei primi apparati della ICOM, all'ora INOUE
6 metri, am 1 watt




Type:	Amateur VHF transceiver
Frequency range:	6 m
Mode:	AM/FM
RF Power output:	1 W
Receiver system:	N/A
Sensitivity:	N/A
Selectivity:	N/A
Image rejection:	N/A
Voltage:	13.8 VDC
Current drain:	RX: ? mA TX: Max ? A
Impedance:	50 ohms
Dimensions (W*H*D):	? mm
Weight:	? Kg
Manufactured:	Japan, 196x-196x (Discontinued
