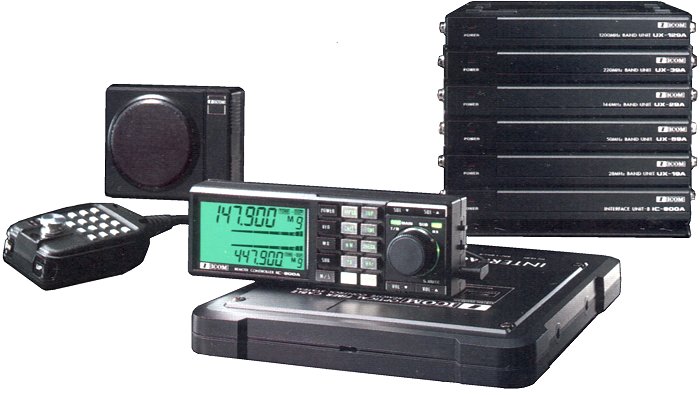

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | 144-146 / 430-440 MHz (12.5/25 KHz steps) |
| Mode: | FM |
| RF Power output: | Hi: 25/25 W Lo: 5/5 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max 1.7 A TX: Max 6 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | Panel: 150*50*25 mm |
| Weight: | ? Kg |
| Manufactured: | Japan, 1987-19xx (Discontinued) |
| Other: | 10 m/10 W and 23 cm/10 W option. Twin RX. |
 ic900ae_user_manual.pdf | 3032 kB |
| icom-ic-900-901-data-structure.pdf | 80 kB |
| icom-ic-900a-e-service-manual.pdf | 9603 kB |
