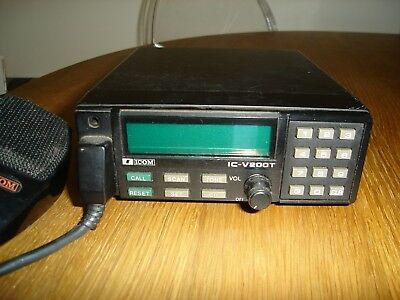

| Type: | Professional land mobile transceiver |
| Frequency range depending on version: |
68-88 MHz 146-174 MHz |
| Mode: | FM |
| RF Power output: | Max 25 W |
| Sensitivity: | 0.55 uV (12 dB SINAD) |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: 0.35-1 A TX: Max 7 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 140*50*191 mm |
| Weight: | 1.5 Kg |
| Manufactured: | 19xx-19xx |
| Other: | 5-tone CCIR and ZVEI. |
| Related documents: |
 IC-U200_IC-V200_Programmazione.pdf | 122 kB |
| ic-v200t.pdf | 2200 kB |
| IC-V200_Service_Manual.pdf | 21026 kB |
