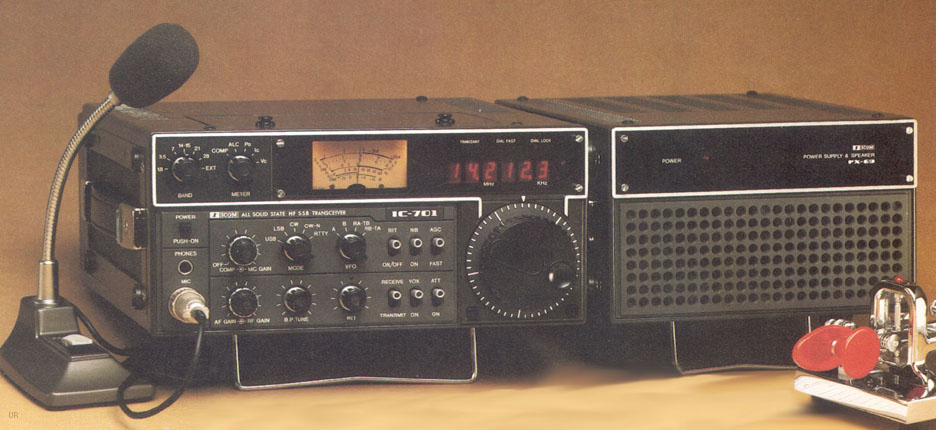

Icom IC-701 - HF Multimodo
qui il manuale utente - qui schemi e diagrammi
| Type: | Amateur HF transceiver |
| Frequency range: | 10-160 m |
| Mode: | SSB/CW/RTTY |
| RF Power output: | Max 100 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: ? A TX: Max 18 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 241*111*311 mm |
| Weight: | 7.3 Kg |
| Manufactured: | Japan, 1978-19xx (Discontinued) |
 IC-701_user_manual.pdf | 6173 kB |
