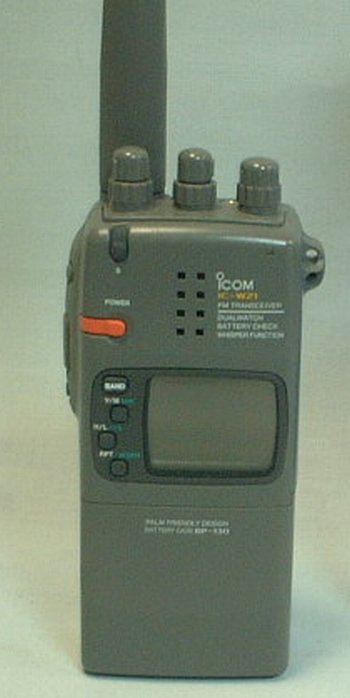

IC-W21



Type: Amateur VHF/UHF transceiver
Frequency range: TX: 144-146 / 430-440 MHz
RX: 100-950 MHz
Mode: FM
RF Power output: Hi: 5/5 W
Lo3: 3.5 W
Lo2: 1.5 W
Lo1: 0.5
El: 15 mW
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 5-16 VDC
Current drain: RX: 15-150 mA
TX: Max 1.5 A
Impedance: 50 ohms, BNC
Dimensions (W*H*D): 57*125*35 mm
Weight: 390 gr
Manufactured: 1992-19xx
Other: Twin RX
New price 1992 in Sweden: 4000:- SEK
