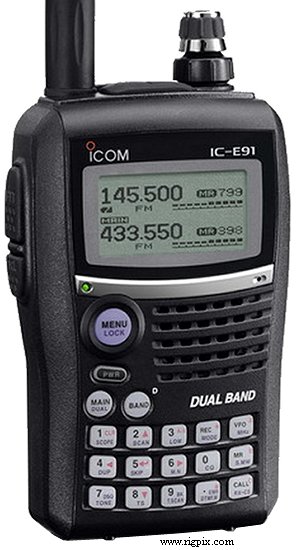

Icom IC-E91 - portatile bibanda
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX: 144-146 / 430-440 MHz RX: 0.495-999.990 MHz 5/6.25/8.33/9/10/12.5/15/20/25/30/50/100/200 KHz steps |
| Mode: | TX: FM/NFM (DV option (Digital voice) UT-121) RX: AM/FM/NFM/WFM (DV option (Digital voice) UT-121) |
| RF Power output: | Hi: 5/5 W @ 7.4 VDC |
| Receiver system: | Dual conversion superheterodyne 1st IF A Band: 61.65 MHz (59.25 MHz WFM), B Band: 46.35 MHz 2nd IF: 450 KHz (13.35 MHz WFM) Triple conversion superheterodyne (WFM only) 3rd IF: 1.95 MHz (WFM) |
| Sensitivity: | N/A |
| Selectivity: | AM/FM: >50 dB NFM/DV: >45 dB WFM: 300 KHz (-3 dB), 700 KHz (-20 dB) |
| Image rejection: | VHF: >60 dB UHF: >50 dB |
| Voltage: | 7.4 VDC (Battery pack) 10-16 VDC (External) |
| Current drain: | RX: 170-370 mA TX: Max 2.2 A |
| Impedance: | 50 ohms, SMA |
| Dimensions (W*H*D): | 58*103*34 mm |
| Weight: | 300 gr (with battery and antenna) |
| Manufactured: | Japan, 2006-2009 (Discontinued) |
| Other: | 1304 memories. DTMF and CTCSS. Spectrum scope PC-programmable. Alpha tags. Twin RX. |
 IC-E91_manuale_utente_italiano.pdf | 10735 kB |
| ic-e91_service_manual.pdf | 3980 kB |
| IC-E91_user_manual.pdf | 1650 kB |
| rohm_sml51_series.pdf | 161 kB |
| rohm_smla12_series.pdf | 354 kB |
