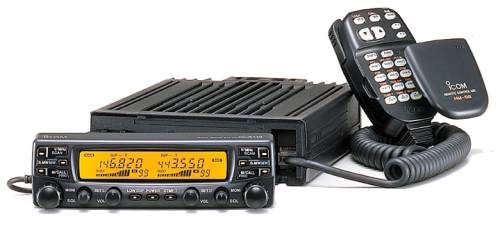

| Type: | Amateur VHF/UHF Transceiver |
| Frequency range: | 144-146 / 430-440 MHz |
| Modes: | FM |
| RF Power output: | Hi: 50/35 W Mid: 10/10 W Lo: 5/5 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max 1.2 A TX: Max 11.5 A |
| Aerial input: | 50 ohms |
| Dimensions (W*H*D): | 140*40*212 mm |
| Weight: | 1.4 Kg |
| Manufactured: | 199x-19xx |
| Other: | Twin RX |
 IC-2710H_service_manual.pdf | 28756 kB |
 IC-2710_schematic_diagram.zip | 2067 kB |
