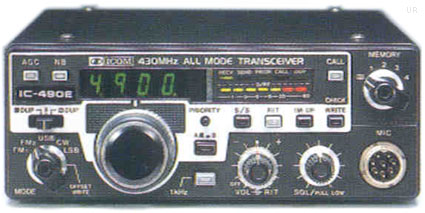

| Type: | Amateur UHF transceiver |
| Frequency range: | 430-440 MHz |
| Mode: | FM/SSB/CW |
| RF Power output: | Hi: 10 W Lo: 1 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: ? mA TX: Max 3.6 A |
| Impedance: | 50 ohms, N |
| Dimensions (W*H*D): | 170*64*218 mm |
| Weight: | 2.6 Kg |
| Manufactured: | Japan, 1982-198x (Discontinued) |
| Other: | Dual VFO's. 4 memories. Scanning New price december 1984 in Sweden: 4995:- SEK |
 IC-490_manuale_utente_italiano.pdf | 796 kB |
 IC-490_modifications.zip | 0.3 kB |
| IC-490_schematic_diagram.pdf | 386 kB |
