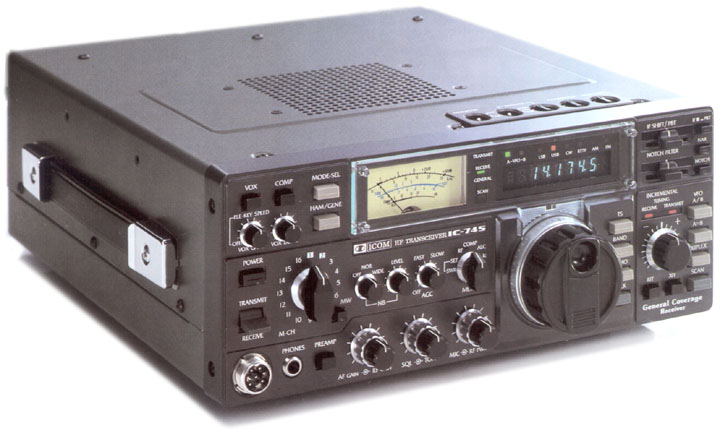

| Type: | Amateur HF transceiver |
| Frequency range: | TX: 10-160 m + WARC RX: 0.1-30 MHz |
| Mode: | SSB/CW/AM |
| RF Power output: | 100 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: ? A TX: Max 20 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? Kg |
| Manufactured: | Japan, 1983-1986 (Discontinued) |
| Other: | FM option New price 1984 in Sweden: 8950:- SEK |
Options/Accessories:
| AT-100 AT-500 EX-241 EX-242 EX-243 FL-44A FL-45 FL-52A FL-53A FL-54 HM-12 HP-1 IC-2KL MB-12 PS-15 PS-30 PS-35 SM-6 SP-3 |
Automatic antenna tuner, 100 W Automatic antenna tuner, 500 W Marker unit. 25 or 100 KHz FM unit Electronic keyer unit SSB filter. 2.4 KHz (-6 dB). IF: 455 KHz CW filter. 500 Hz (-6 dB). IF: 9.0115 MHz CW filter. 500 Hz (-6 dB). IF: 455 KHz CW filter. 250 Hz (-6 dB). IF: 455 KHz CW filter. 270 Hz (-6 dB). IF: 9.0115 MHz Hand microphone Headphones 500 W linear amplifier Mobile mounting bracket Power supply Power supply. 13.8 VDC, 25 A Internal power supply Desk microphone, electret External speaker |
 IC-745_schematic_diagram.pdf | 1130 kB |
| IC-745_service_manual.pdf | 18494 kB |
| IC-745_user_manual.pdf | 4876 kB |
