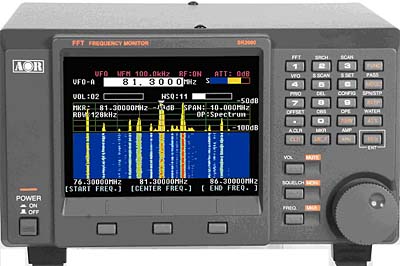

Ricevitore da base
| Type: | HF/VHF/UHF receiver/scanner with built-in SDU |
| Frequency range: | 25-3000 MHz |
| Mode: | AM/FM/NFM/WFM |
| Sensitivity: | AM (10 dB S/N) 25-225 MHz: 0.6 uV 225-1700 MHz: 0.8 uV NFM (12 dB SINAD) 25-225 MHz: 0.35 uV 225-1700 MHz: 0.35 uV 1700-2700 MHz: 0.6 uV 2700-3000 MHz: 1.5 uV WFM (12 dB SINAD) 25-225 MHz: 2 uV 225-1700 MHz: 2 uV |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 12-16 VDC |
| Current drain: | Max 1.4 A |

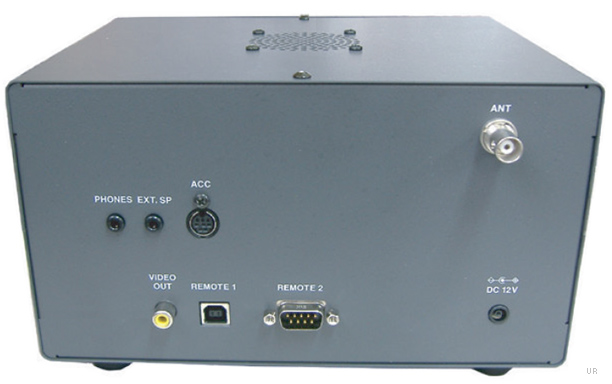

| Impedance: | 50 ohms, BNC |
| Dimensions (W*H*D): | 220*120*195 mm |
| Weight: | 3.3 Kg |
| Manufactured: | 2005-200x |
| Other: | 1000 memories. Ultra-fast FFT search algorithms. Up to 10 MHz spectrum bandwidth. Waterfall display. 5" color TFT. RS-232C |
