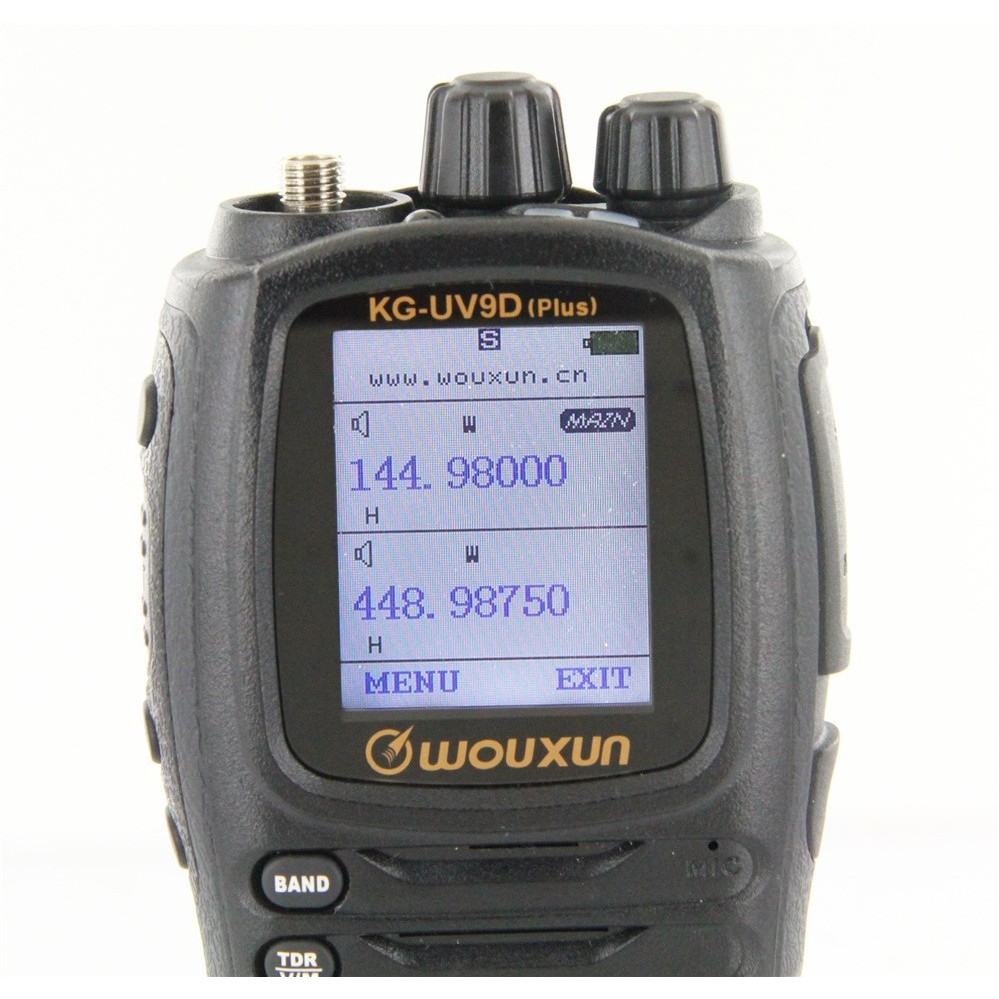

Un bibanda puro VHF ed UHF, quindi più di un "semplice" duobanda. Ha le stesse caratteristiche del Wouxun KG-UV9D al quale aggiunge la modalità trasponder tra le due bande ed i seguenti menù:
| Menu # | Name | Option | Values | Description |
|---|---|---|---|---|
| 41 | BLCDSW | Backlight Standby Switch |
ON/OFF | Controls the backlight when in standby (default is only little backlight for viewing the display screen) |
| 42 | BLEDSW | Backlight Prompt Switch |
ON/OFF | Indicates the radio is on when the backlight is off in standby (green LED light flashes every 5 seconds when the backlight is completely off) |
| 43 | TYPE-SET | Repeat Setting |
TALKIE DIR-RPT TW-RPT |
Selects whether the radio is in Transceiver Mode, Directional Cross-Band Repeat, or Two-way Cross-Band Repeat |
| 44 | RPT-SPK | Repeat Speaker |
ON/OFF | Select whether to open the speaker when there is audio received on the repeating receiver. |
| 45 | RPT-PTT | Repeat PTT | ON/OFF | Select whether using PTT to transmit out when repeating. The repeating signal is interrupted while PTT transmits. |
| 46 | RPT-KPT | Repeat Hold Time |
OFF/100-5000 300 |
When the signal disappears from the receiver, the user continues transmitting for a while when waiting for response within the valid hold time. If there is no more signal detected, it stops |
 KGUV9DPlus-UserManual.pdf | 15268 kB |
