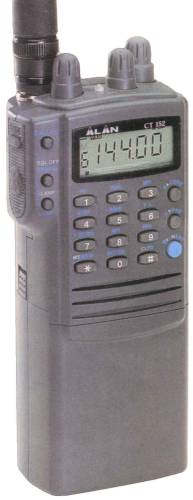

| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 144-146 MHz (130-175 MHz) RX: 58-175 MHz |
| Mode: | TX: FM RX: AM/FM |
| RF Power output: | Hi: 5 W Mid: 2.5 W Lo: 0.35 W |
| Receiver system: | N/A |
| Sensitivity: | 0.5 uV (15 dB S/N) |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 5-16 VDC |
| Current drain: | RX: 12-? mA TX: Max 1.3 A |
| Impedance: | 50 ohms, BNC |
| Dimensions (W*H*D): | 48*68*30 mm (battery excluded) |
| Weight: | 180 gr (without battery and antenna) |
| Manufactured: | 199x-199x |
| Other: | VOX, CTCSS |
 Alan_CT152_manuale_utente_italiano.pdf | 574 kB |
