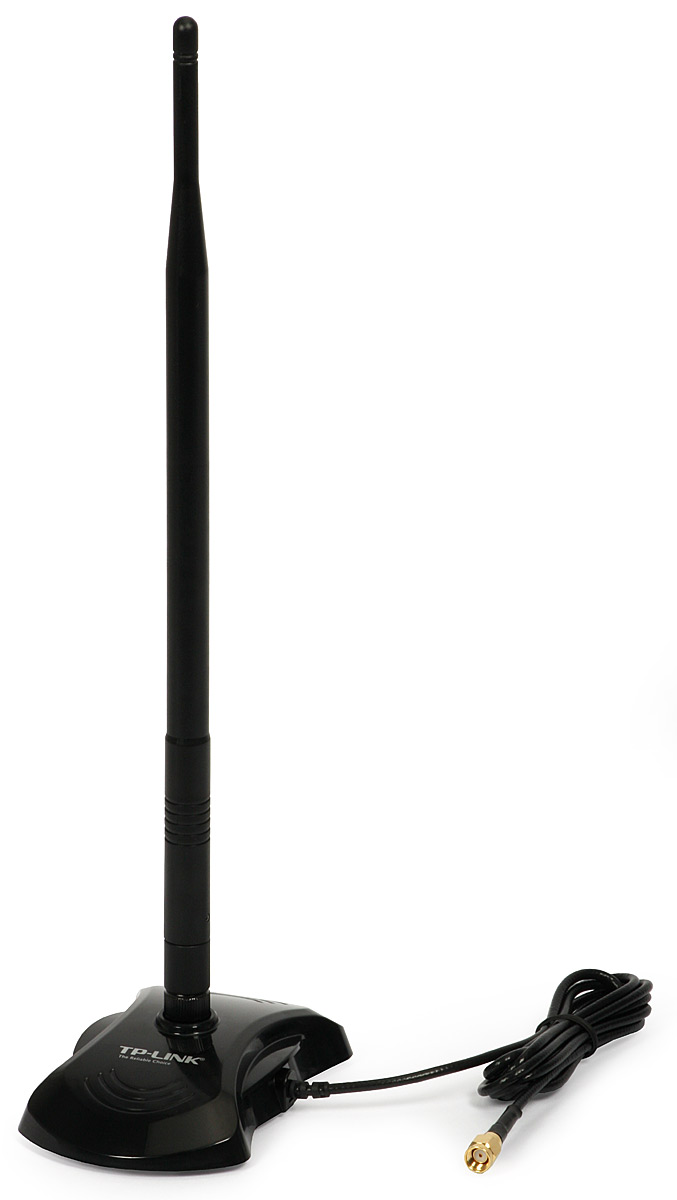

Antenna 2.4 Ghz con base magnetica inclusa. Adatta per estendere il segnale WI-FI
Di seguito le caratteristiche. Allegato il manuale in italiano


Frequency Range 2.4GHz~2.4835GHz
Impedance 50 Ohms
Gain (peak) 8 dBi typ.(excluding cable loss)
VSWR 1.92 : 1 Max
Polarization Linear, Vertical
Beamwidth (HPBW) Horizontal: 360°
Vertical: 15°
Connector RP-SMA Male
Cable 130cm RG-174
Radiation Omni-directional
Admitted Power 1 W
Application Indoor
Mount Style Desktop / Fixed on metal surface
Operating Temperature -10~60 (14~140);
Storage Temperature -40~80 (-40~176)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
Safety, Emission and others Compliant with RoHS

Scarica questo file (TL-ANT2408C.pdf)TL-ANT2408C.pdf189 kB
