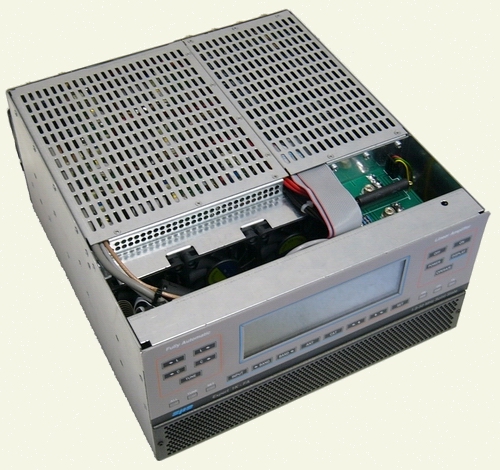

1 KW Solid State Fully Automatic Linear Amplifier


Amplificatore lineare da 1000 W da 1.8 a 50 Mhz, ecco questo è nella mia lista dei desideri al primo posto



- The smallest in the world

Built–in Power Supply and Automatic Antenna Tuner

Dimensions: W 28, H 14, D 32 cm (W 11.02”, H 5.51”, D 12.60”) (connectors included)

Weight: approx. 20 Kg Kg (19 Kg typ.), 44 lbs (41.8 lbs typ.).

- The most technologically advanced in the world

Two CPUs are used, one of which is dedicated to the transceiver interface requirements (CAT).

Pi-L output circuit.

Over 13000 lines of software for performance that cannot be found in any other amplifier.

- Fully Automatic

Easy connection with all models "ICOM, YAESU, KENWOOD, TEN-TEC, FlexRadio ELECRAFT" for immediate management of the bands, tuner and antennas.

Same performance with all makes or homemade rigs.

The operator has only to move the “Frequency Tuning Knob” in the transceiver!!!

- Wide frequency coverage

1.8 MHz to 50 MHz including WARC Bands.

- Full solid state

1 KW pep SSB out.; 900 W pep CW out (typ.) ; 700 W pep out. (typ.) on

50 MHz.

FULL / HALF power selected according to the operator SSB/CW power requirement, for digital modes and for linear protection (automatic).

No heating time, immediately ready!

Virtually limitless life of the amplification devices (MOSFETs)!

- Automatic Antenna Tuner built-in

Capable of matching 3:1 SWR on HF, and 2.5:1 SWR on 6 meters.

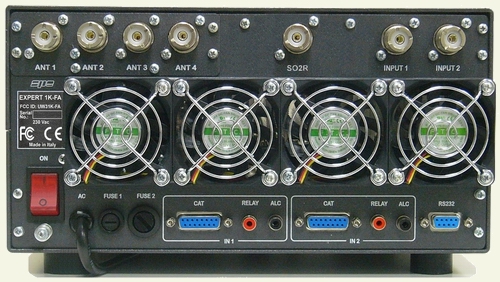

Capable of programmable switching of 4 antennas (SO239 connectors).

Up to two antennas for the same band.

Bands, Antennas, Tuning conditions are changed in 10 msec.

Bands, Antennas and Tuning conditions are managed also in “STBY“ to support the exciter only.

- SO2R

- Two inputs available

SO239 connectors.

- High power gain (16 dB)

In “OPERATE“ the required drive power is automatically set with an ALC connection and

in “STANDBY“ the exciter is then automatically reset to full power

- Very clean and low distortion output

Spurious emissions less than -50 dB ( 50 MHz –60 dB ).

3rd order distortion (two tone test) 36 dB typ.

- Input 50 ohm always perfectly matched

SWR less than 1.2:1.

- Fully protected

Temperature, Over Voltage, Over Current, SWR, Reflected Power, Max RF Tuner Voltage, Over Drive, Amp.

The correct parameters are continuously monitored.

The same protections are realized in two different ways:

· Via hardware (HW), to assure great speed.

· Via software (SW), to assure great accuracy.

Thanks to the SW, transmit relay changeover is carried out with zero current at the contacts.

- Full break-in operation (QSK)

- Normal / Contest operation to optimize the performance

- Very quiet operation

Seven quiet three-speed cooling fans:

· 150 CFM maximum total air flow.

Temperature thresholds for speed change:

· 40°C (104°F), 70°C (158°F) and 80°C (176°F). (normal mode).

· 60°C (140°F) and 75°C (167°F). (contest mode).

Noise level:

· 39 dBa at maximum blower speed.

- Continuos use

"FULL" mode: SSB unlimited, key down 2 minutes.

"HALF" mode: SSB unlimited, key down 5 minutes.

- Regulated power supply, input 230 / 215 / 200 / 115 / 100 Vac

With all input voltages the out power doesn't change.

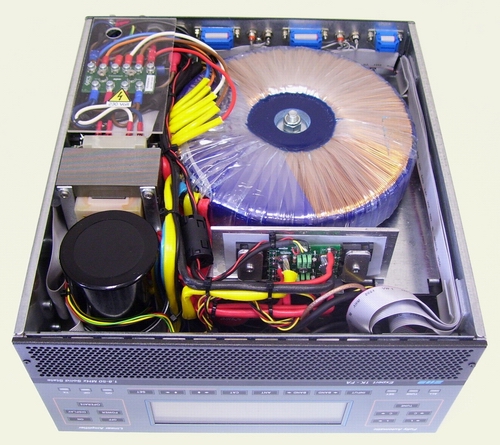

A well designed grain-oriented, tape-wound toroidal transformer reduces magnetic fields around the amplifier.

- The linear can be switched ON / OFF also switching ON / OFF the exciter

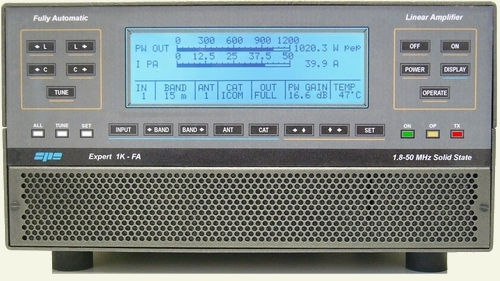

- With a large LCD display is possible to have a great deal of information

W pep out, V pa, I pa, W pep reflected, Power gain, Temperature (°C, °F), SWR, Input setting, CAT setting, Band and other indications including an alarms log.

- Easy to operate

Powerful SW gives you a user-friendly unity.

- RS 232 port for a PC control

A SW is supplied to remote the linear frontal panel.

With a proper protocol it is possible to use this port not only as a remote control but also as a CAT port (useful to link the linear with any customer application).

- Easy transportation

A sturdy carry-bag is supplied for “QSY, FIELD DAY, DX’ PEDITIONS etc.“.

- Certifications :





Scarica questo file (Expert1K-FA-Brochure.pdf)Brochure1077 kB
Scarica questo file (EXPERT1K-FA-quickstart.pdf)quickstart109 kB
Scarica questo file (User\'s manual ver.3.1.pdf)manuale utente english887 kB
