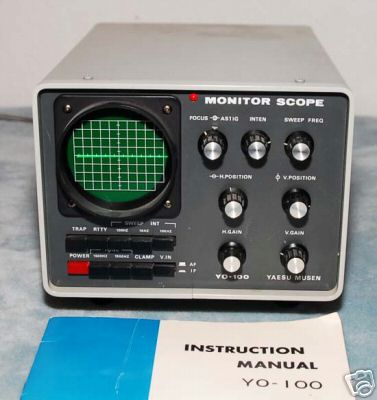

The YO-100 Monitor- scope consists of a monitor of "On the air" signal and an oscilloscope.   A two tone signal generator is built-in for SSB adjustment, and the cabinet design of the YO-100 and YO-101 matches that of the entire family of equipment in  the Yaesu FT-101 series, FT-277/FT-201 transceivers, FR-101, FL-101 Twins.

Scarica questo file (YO-100_schema.pdf)YO-100_schema.pdf108 kB
Scarica questo file (YO-100_user_manual.pdf)YO-100_user_manual.pdf8137 kB
