Type: External VFO
Power supply: 13.8 VDC (supplied by transceiver)
Current drain: Max 250 mA
Dimensions (W*H*D): 180*100*240 mm (7.09*3.94*9.45")
Weight: 2.9 Kg (6.4 lbs)
Manufactured: Japan, 197x-197x (Discontinued)
Other: Made for TR-7200G and TR-2200GX
There are two versions. The later version featured
-600 KHz repeater shift while the early version did not.


trio vfo30

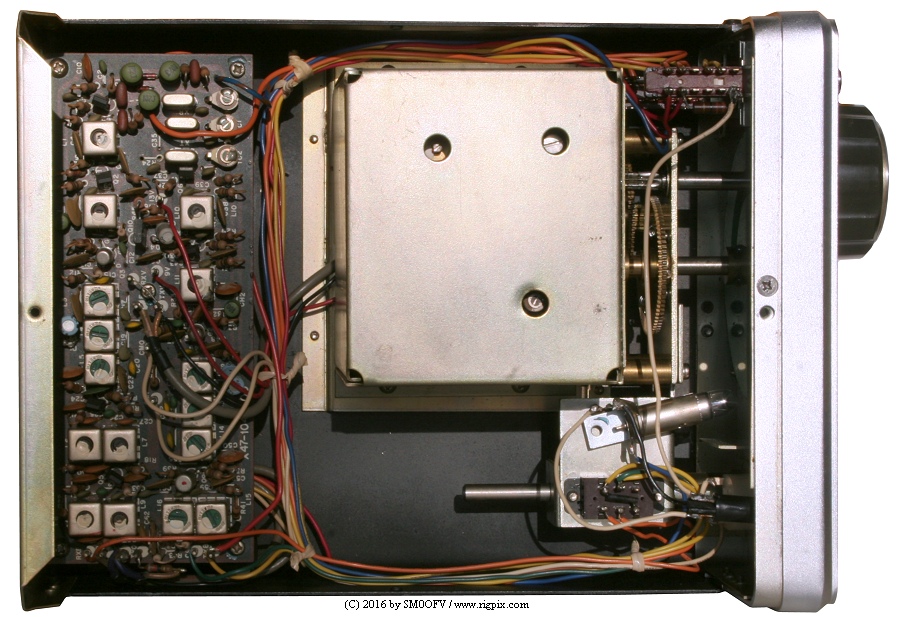

trio vfo30 inside

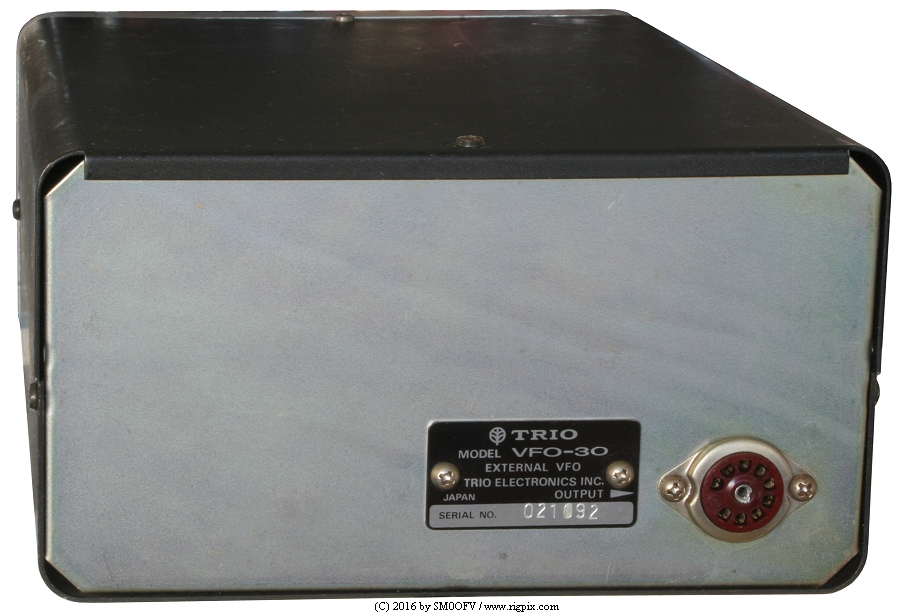

trio vfo30 back

Scarica questo file (kenwood_vfo30g_manual.pdf)kenwood_vfo30g_manual.pdf3185 kB
