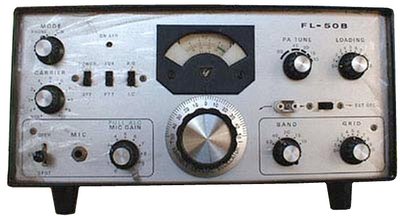

| Type: | Amateur HF transmitter |
| Frequency range: | 10-80 m |
| Mode: | AM/SSB/CW |
| RF Power output: | Max 75 W (input) |
| Voltage: | Mains |
| Current drain: | N/A |
| Impedance: | 50-75 ohms |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? Kg |
| Manufactured: | 197x-197x (Discontinued) |
| Type: | HF receiver |
| Frequency range: | 10-80 m |
| Mode: | AM/SSB/CW |
| Sensitivity: | 0.5 uV (10 dB S/N) |
| Selectivity: | 5 KHz (-50 dB), 1.8 KHz (-6 dB) |
| Image rejection: | >50 dB |
| Audio: | 1.5 W 4/600 Ohm |
| IF: | 5.173,9; 455 kHz |
| Readout: | Analog |
| Voltages: | 110-235 VAC, 50/60 Hz |
| Current drain: | ? |
| Impedance: | 50-75 ohms |
| Dimensions (W*H*D): | 13 x 6 x 10.25" |
| Weight: | 17.5 lbs |
| Manufactured: | Japan, 196x-19xx |
| Other: | 8 tubes |
 FL-50B-Schema.pdf | 1834 kB |
| FL-50B-User-Manual.pdf | 653 kB |
| FR-50B-Schema-Elettrico.pdf | 493 kB |
| FR-50B-User-Manual.pdf | 1679 kB |
