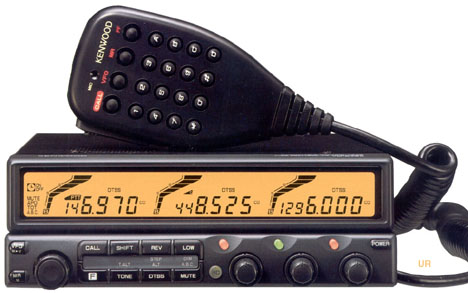

The Kenwood TM-942A is similar to the TM-742A. But it came with the 2 Meter and 440 MHz bands and 1200 MHz bands all built-in (not just 2 Meters and 440 MHz)! Power output is 50/10/5 watts on 2 meters, 35/10/5 watts on 440 MHz and 10/10/1 watts on 1.2 GHz.
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | 144-148 / 440-450 / 1240-1300 MHz |
| Mode: | FM |
| RF Power output: | Hi: 50 / 35 / 10 W Lo: 5 / 5 / 1 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max ? A TX: Max ? A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? Kg |
| Manufactured: | 19xx-19xx (Discontinued) |
| Other: | 10 m/6 m option, Triple RX |
 TM642_TM742_TM942_user_manual.pdf | 3616 kB |
| TM742_TM942_service_manual.pdf | 10490 kB |
