| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 222-225 MHz RX: 216-278 MHz (5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz steps) (After modification: RX/TX 200-299.995 MHz depending on VCO alignment) |
| Mode: | FM |
| RF Power output: | Hi: 25 W Mid: 10 W Lo: 5 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max 600 mA TX: Max 8 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 142*40*174 mm |
| Weight: | 1.0 Kg |
| Manufactured: | Japan, 2001-200x (discontinued) |
| Other: | 101 memories. CTCSS, DCS and DTMF. 1K2/9K6 TNC option. Theft alarm Digital voice board option (requires at least two similarly equipped radios) PLL: M64076GP (IC501) |
|
|
The Alinco DR-235TMkIII features a full-featured 220 MHz 25 watt FM transceiver with an alphanumeric display (up to seven characters) with 100 memory channels. Three power outputs (25/10/5 watts) are available. CTCSS encode and decode are standard. The receive range is 216.000 - 279.995 MHz (FM). Enter the digital age with the optional EJ-40U. This radio is 5.55 x 1.61 x 6.06 inches 1.9 Lbs (141x41x154mm 0.86 kg). The DR-235 series each include the EMS-56 DTMF Hand Mic (with metal plug), mobile bracket, DC cord, alarm cable and mounting hardware.

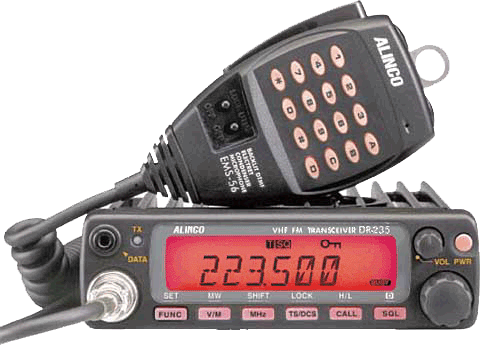

The DR-235T has a black case (not shown). The DR-235TG pewter colored version (shown above) has been discontinued.
 Alinco_DR-135_DR-235_DR-435_service_manual.pdf | 5238 kB |
| DR-135_235_435_Dealer_Manual.pdf | 201 kB |
 dr-235_rxtx_expansion.txt | 1 kB |
