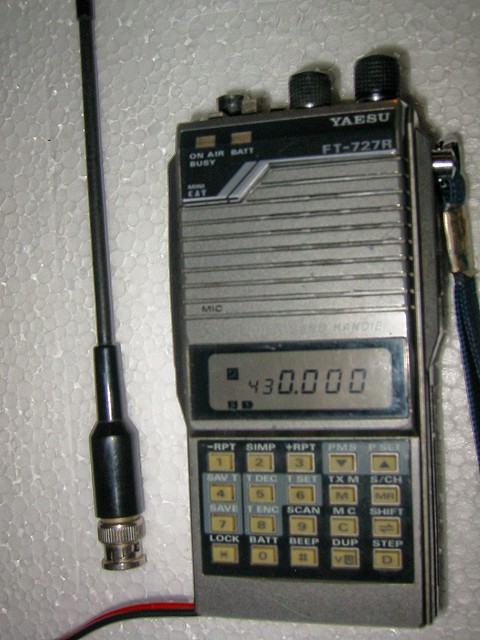

portatile VHF/UHF



Type: Amateur VHF/UHF transceiver
Frequency range: 144-146 / 430-440 MHz (Europe and Asia)
144-148 / 430-450 MHz (USA)
Mode: FM
RF Power output: Hi: 5/5 W
Lo: 0.5/0.5 W
Receiver system: N/A
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 6-15 VDC
Current drain: RX: Max 150 mA
TX: Max 1.35 A
Impedance: 50 ohms, BNC
Dimensions (W*H*D): 71*200*38 mm
Weight: 616 gr (with FNB-4A)
Manufactured: Japan, 1986-19xx (Discontinued)
Other: CTCSS/PL option. VOX
Allegati:
Scarica questo file (FT-727R_service_manual.pdf)FT-727R - service manual12367 kB
