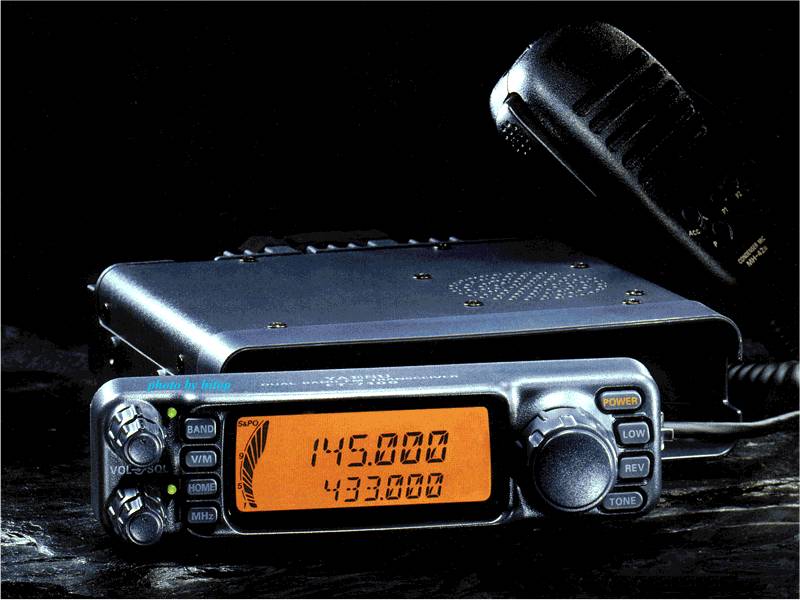

ft-7100

Veicolare VHF/UHF



Type: Amateur VHF/UHF transceiver
Frequency range: TX: 144-146 / 430-440 MHz (Europe)
TX:144-148 / 430-450MHz (USA)
RX: 108-180 / 320-480 / 810-1000 MHz *
Mode: TX: FM
RX: AM/FM
RF Power output: Hi: 50/35 W
Mid1: 20/20 W
Mid2: 10/10 W
Lo: 5/5 W
Receiver system: N/A
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.8 VDC
Current drain: RX: Max 0.5 A
TX: Max 11.5 A
Impedance: 50 ohms, SO-239 (N-type for Europe)
Dimensions (W*H*D): 140*38*166 mm
Weight: 1.0 Kg
Manufactured: Japan, 2001-200x (Discontinued)
Other: 262 memories. Detachable head. CTCSS & DCS
ARTS. 9K6 packet ready. Twin RX. * Cellular blocked in the US
Allegati:
Scarica questo file (FT-7100M_schema.pdf)FT-7100M - schema730 kB
Scarica questo file (FT-7100M_user_manual.pdf)FT-7100M - user manual3521 kB
