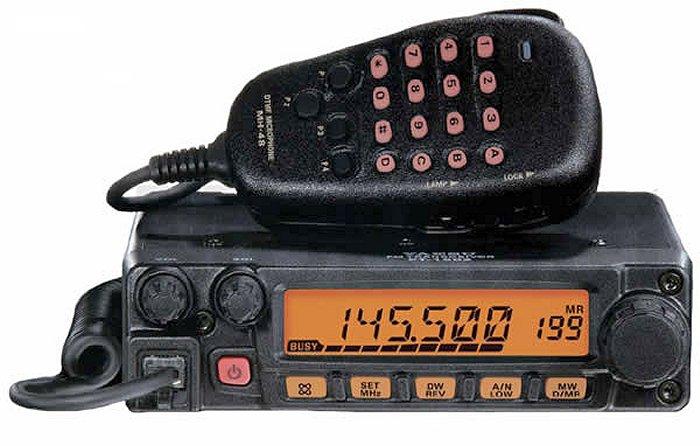

| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 144-146 MHz RX: 136-174 MHz (5 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz steps) |
| Mode: | FM/NFM |
| RF Power output: | Hi: 50 W Mid: 25 W Lo2: 10 W Lo: 5 W |
| Receiver system: | N/A |
| Sensitivity: | <0.2 uV (12 dB SINAD) |
| Selectivity: | FM: 12 KHz (-6 dB), 28 KHz (-60 dB) NFM: 9 KHz (-6 dB), 22 KHz (-60 dB) |
| Image rejection: | >70 dB |
| Voltage: | 13.8 VDC |
| Current drain: | RX: 300-700 mA TX: 4-10 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 140*40*146 mm |
| Weight: | 1.2 Kg |
| Manufactured: | 2006-200x |
| Other: | 221 memories with Alpha-tags. ARTS, DTMF, CTCSS, DCS WIRES II. CW trainer. Password protection. New price 2006 in Sweden: 1995:- SEK |
 FT-1802E - manuale utente in italiano | 2227 kB |
| FT-1802 - schema | 1366 kB |
| FT-1802 - user manual | 2174 kB |
| FT-1802 - modifica | 1233 kB |
